端口 & 界面
| DC-IN插口 |
N |
| 超级视频输出 |
1 |
| 音频（左、右声道）输出 |
1 |
| 分量视频(YPbPr/YCbCr)输入 |
1 |
| 分量视频(YPbPr/YCbCr)输出 |
1 |
| 复合视频 |
1 |
系统要求
| 最低处理器 |
1.6 GHz |
| 最低内存 |
256 MB |
| 最小硬盘空间 |
1024 MB |
技术细节
| 支持的视频格式 |
JPG, BMP |
| 主机接口 |
USB 2.0 |
| 视频捕捉分辨率 |
720 x 576 pixels |
| 內置式 |
N |
| 视频采集来自 |
Game console, DVD Player, SVHS, VHS |
视频
| 最大的视频拍摄分辨率（NTSC） |
720 x 480 pixels |
| 最大的视频拍摄分辨率（PAL） |
720 x 576 pixels |
| 视频捕获速度（NTSC） |
30 fps |
| 视频捕捉速度（PAL） |
25 fps |
USB 2.0, NTSC/PAL, 113.4g, Black

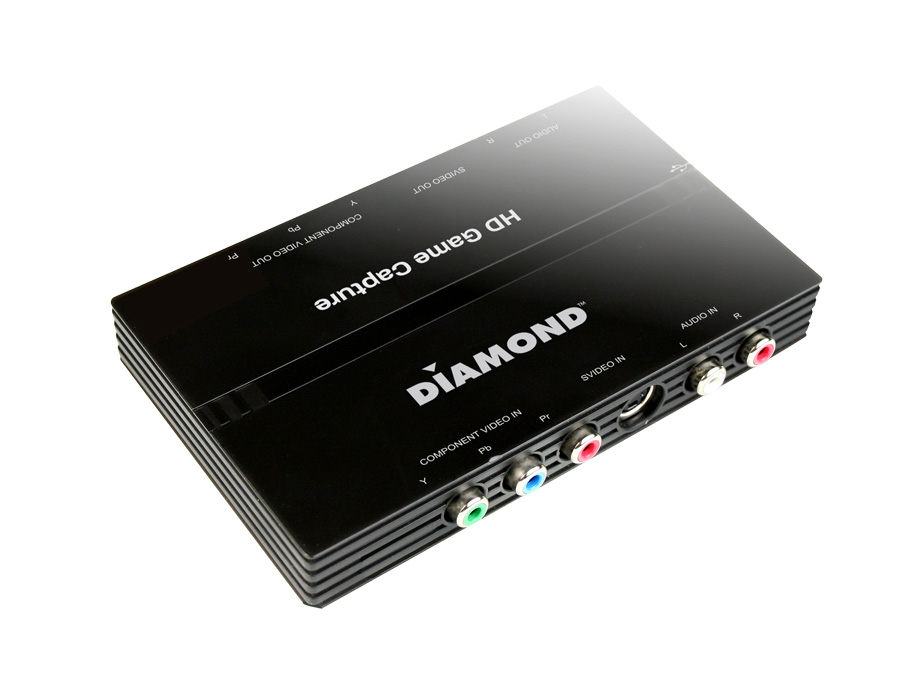

Capture & Edit Your Games from gaming consoles such as Xbox® 360 & PS3®, or VHS, DVD player, camcorder or satellite set top box. Share Your Recorded Gameplay Sessions on You TubeTM & Facebook®. Record & Play with No Delays
- High Definition (HD) Video capture box with component input and output
- Supports H.264 software compression
- Supports YPbPr, Composite and S-Video inputs from Blu-Ray DVD, Game Console and Set-top box, etc
- LOOPTHROUGH video input and video output support giving zero-delay display on TV set
- Includes DVC (Diamond Video Capture) software with direct upload to You Tube interface
- Real-time HD Video Capture on PC or Laptop via USB 2.0
- PIP/POP for Video Playback
- Microsoft Windows XP, Vista & 7 Compatible
- Interface: USB 2.0
- Video Standards: NTSC/PAL
- TV/Video Loop Through
- Video capturing formats: MPEG-2 AAC-LC
- Video Inputs: Component YPbPr, Composite RCA or S-Video
- Still image capturing: JPG or BMP formats
- NTSC Video Capture:720x480 @30FPS
- PAL Video Capture: 720x576 @25FPS
- Power Director 8 for Video Capture, Edit and Burn
- Diamond Cap - video capture, editor and DVD creator
