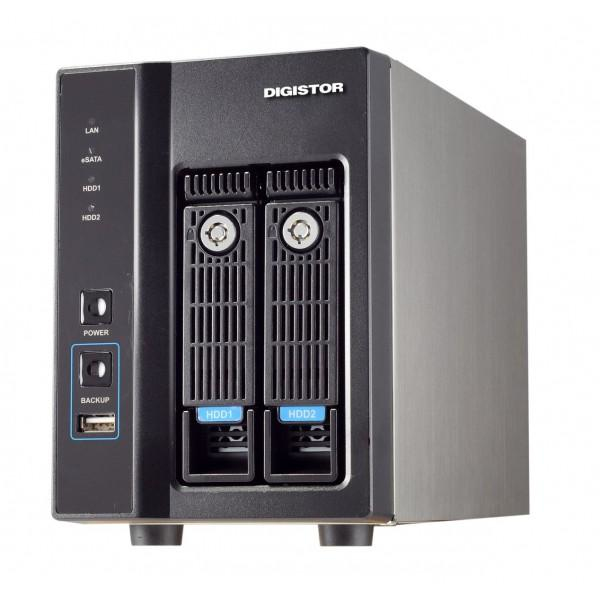

Digiever DS-2005 digital video recorder

DS-2005, Tower, CPU - RISC, 1GB (DDR3), 256MB Flash, HDD up to 8TB (2 x 4 max.), LAN, 3 x USB 2.0, 2 x eSATA, 60W, 100-240V, 2.09 kg, black <b>DS-2005 DIGISTOR NVR offers instant monitoring via remote IE browser anytime, anywhere</b>
- Multi-NVR Server Monitoring
- Various Monitoring Modes
- Convenient Control of PTZ and Speed Dome Cameras
- Digital Zoom in/ Zoom out

​​DIGISTOR NVR lets users monitor remotely via IE browser. In web-based interface, DS-2005 offers 1/4/8/9/10/12/16/20/25/30/36 & 5+1/12+1-channel & sequential display modes and supports up to 5 channels. DIGISTOR NVR can be a multi-NVR server to connect other DIGISTOR NVR and select a maximum of 144 channels as well as simultaneously monitor other remote NVR sites without installing any extra VMS software. Also, remote monitoring offers control of PTZ camera and lets users view preset positions of the IP camera.

<b>Smart and scheduled recording</b>
- Various Compression Formats
- Various Recording Modes
- Flexible Threshold of Recorded Videos
- Multi-stream for Monitoring & Recording

​DIGISTOR NVR gives users high performance megapixel recording and supports MJPEG, MPEG-4 and H.264 formats. Users can configure different recording schedules such as continuous, schedule, event and audio recording for each camera in high megapixel recording. Users can also set recording percentage or days for keeping videos to overwrite the oldest video files automatically. Furthermore, DIGISTOR NVR supports multi-stream to let users set video format, frame rate, resolution and other features in different conditions to save bandwidth for monitoring and recording.

<b>Diversified events and corresponding trigger actions</b>
- Event Recording
- E-Mail Notification
- E-Mail Video Clip
- Buzzer Alarm
- User-defined Digital Output Actions

Events: Camera connection lost, intelligent motion detection, user-defined digital input and NVR system connection lost
Actions: Event recording, E-Mail Notification, video clip via E-Mail, buzzer and user-defined digital output

When an event is triggered, such as motion detection or digital input, DIGISTOR NVR can take various actions such as recording video in the server and sending a video clip instantly to users by E-mail. In addition, buzzer can be enabled to sound up to 60 seconds as abnormal events occur. Users can also define digital output actions by themselves, such as fire alarm system.

<b>Intuitive playback and clear interface to view recorded video</b>
- User-friendly Video Search by Date, Time, Channel, Normal Record, Event and Recovered File
- Exporting Recordings
- Taking a Snapshot

​DIGISTOR NVR lets users search the recorded video by selecting date, time, channel number, normal record, event and recovered file. DIGISTOR NVR allows exporting video files in AVI format and during playback users can also take a snapshot and save photo in PC.

<b>Reliable security choices in DIGISTOR NVR</b>
- Stable and Secure Linux-embedded System
- Detailed Log Information
- User Privilege Management
- Flexible Permission and Prohibition of IP Range for Controlling the Access

DIGISTOR NVR is a Linux-embedded operating system which is efficient to avoid virus attack and hacker intrusion. Compared with PC, Linux-embedded system offers more green and power saving. With over six clear log systems, users can do quick trouble shooting and security control of DIGISTOR NVR. As for privilege management, administrator can add multiple user groups like power user and user to configure live view and playback access. Besides, users can specify IP address or network segment to permit or prohibit specific IP address as white or black list from live view or playback access.

<b>Smart enhancement brings you more convenience</b>
- Monitoring Everywhere via iPhone and Android Operating System
- Intelligent EZ Search of NVR
- Trouble Free Installation in 5 Steps

No matter where you are, you can monitor live view through iPhone or Android phone and control PTZ camera. Besides, with EZ Search, users can quickly find NVR in the network and connect to web-based interface. In only 5 steps, users can finish Quick Configuration in web-based interface.

<b>Configuration in advance Save time for backup in convenience</b>
- Backup with Day, Hour and Channel Preset
- Efficient Hardware USB Backup Button

​Users can set a maximum of days and hours to backup the latest video files and configure the specific channels for duplication in advance. After setting the time and channels, users just need to press USB BACKUP button on the NVR and then export the video files to external USB device. When an urgent need arises, video files are backed up efficiently and quickly.

<b>DIGISTOR NVR’s excellent hardware performance truly enhances your efficiency</b>
- High Network Throughput for High Megapixel Recording
- Supports up to 4TB Storage Capacity per Hard Disk Drive
- Built-in Advanced RAID Configuration with Hot Swap Design
- Automatic Recovery from DIGISTOR NVR Power Outage
- Built-in GPIO: 4 in 2 out

​DIGISTOR NVR is powered by RISC CPU for excellent megapixel recording and provides network throughput up to 150Mbps. DIGISTOR NVR supports the hard disk drive up to 4TB per drive. Through DIGISTOR NVR, users can configure JBOD, RAID0 and RAID1 in web-based interface; hot swap design allows users to replace failed HDD without turning off the server. DIGISTOR NVR will also automatically recover when power resumes after an outage and recover missing file caused from power outage. On the other hand, DIGISTOR NVR supports built-in General Purpose I/O for both choices of setting digital input and output.

<b>Simple and functional complement of network video recorder</b>
- DDNS Service
- NTP Server
- Static IP or DHCP
- Quick UPnP Search for Connecting Camera
- Windows Networking and FTP Service

​Users can register a domain name from a dynamic DNS (DDNS) provider and enable DDNS in DIGISTOR NVR. DIGISTOR NVR supports NTP (Network Time Protocol) by selecting time zone for synchronizing the date and time. Users can flexibly set static IP or DHCP server to enter the network video recorder. Besides, users can add camera via quick UPnP search in LAN. With Windows networking and FTP service, DIGISTOR NVR allows users quickly access the video files.
