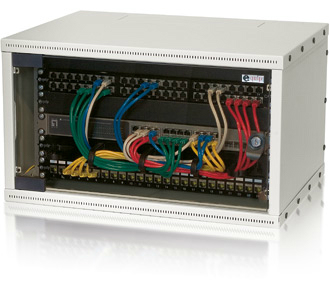

Digital Data Communications 901006 Wall mounted rack rack

48.26 cm (19 ") Flat pack cabinet, Grey, 25kg load This 19” wall-mounted cabinet with IP 30 protection offers a high quality processing and the newest technologies to ensure a long operating life time. This cabinet is supplied only with a glass door and a lock. The hinge system enables almost 180° wide opening of the door. The door can be easily removed and mounted for a change of the door opening direction. The vertical 19” rails (1x pair) can be adjusted freely in any depth of the cabinet. This simplifies the mounting of the devices and the configuration of connecting cables.

Flat-Pack Concept
Reduce costs of transportation and storage. Together with a unique construction, it contributes to the attractive price while keeping all functional characteristics.

Monting
Thanks to the unique construction, the assembly procedure of equip 19” flat pack cabinet takes only few minutes and it does not almost require any tools (Torx T25).

Breakout-type Blanking Panels
The cable openings are covered with breakout-type blanking panels are ready in the top, bottom and rear part of the cabinet.

- 19" flat pack box
- demountable, compact packing measures
- easy for shipping
- plastic pins are used to join all parts of the cabinet
- the assembly procedure takes only a couple of minutes
- the maximal loading capacity is up to 25kgs
- with lockable glass door
- door for left or right opening
- break out cable entries are located in the top and bottom as well as in the middle of the back side
- all metallic parts of the cabinet are mutually earth connected
- available in RAL 7035 light grey and RAL 9005 black
