重量和尺寸
| 发射器尺寸（宽x深x高） |
115 x 91 x 28 mm |
| 发射器重量 |
340 g |
| 接收器的重量 |
380 g |
| 接收器尺寸（宽 x 深 x 高） |
115 x 91 x 28 mm |
技术细节
| 视频输入 |
DisplayPort |
| 视频输出 |
DisplayPort |
| 最大分辨率 |
1920 x 1080 pixels |
| 电缆长度 |
100 m |
| 可支持的电缆类型 |
Cat5e, Cat6 |
| 材料 |
Metal |
| 支持的视频模式 |
720p, 1080i, 1080p |
| 数量 |
2 |
| 类型 |
AV transmitter & receiver |
| 墙壁支架 |
Y |
另外
| 产品色彩 |
Black |
| 颜色深度 |
48 bit |
| 以太网连接器 |
Y |
| 包括 AC 适配器 |
Y |
| 运行温度范围（T - T） |
0 - 50 °C |
DisplayPort 1.1, RJ-45, 1920x1080@60Hz, Full HD 1080p, 5V/2A

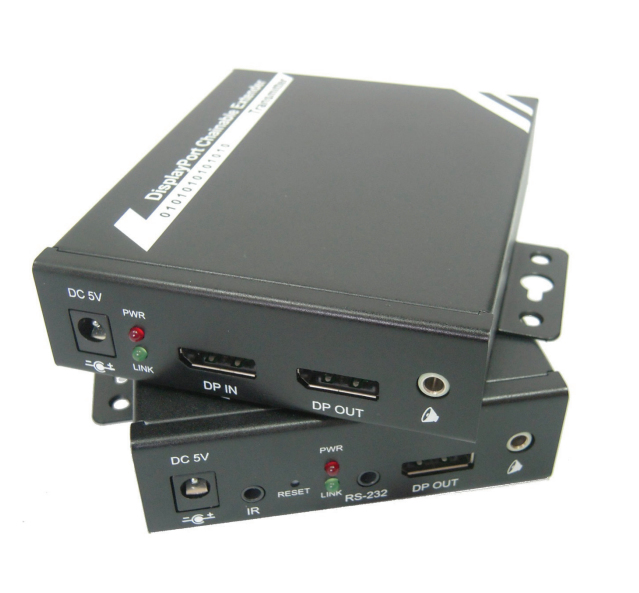

The DisplayPort over IP Extender allows you to extend video and audio up to 100
meters distance between source or computer and monitor or projector. With the builtin
video and audio signals enhancement, you can gain the best video resolution
quality and audio stereo sound while listening, and no any additional software
needed. Furthermore, the installation and operation are easily more than expected.
With using in extension facilities of video and audio, this product, The DisplayPort
over IP Extender, delivers worthy of performing efficiency and value-added.
- Support DisplayPort 1.1
- With Expandable Receiver, each Receiver Unit with cascade function enables to
- link two other (2) Receiver Units consecutively extending another 100m distance,
- and continue expanding corresponding to custom demand as likely
- Cascade/Tree Chain web architecture spread.
- Uses easy to install, inexpensive CAT. 5e/6 cables
- Each pair (TX & RX) extends the signals up to 100m (330 feet) using 1-to-1
- connection
- Uses network environment for transmission
- Supports video high resolution up to 1920x1080@60Hz, Full HD 1080p
- HDTV compatible (720p, 1080i, 1080p)
- Supports Stereo 2.0
- Cascaded-chainable receiver up to 10 layers
- Supports RS-232 (Serial)
- IR (Infrared remote) enabled
- Support local DisplayPort monitoring port
- Each receiver (remote) links cascade-chainable 2 receivers
- Support VGA(DS-53201) and HDMI (DS-55201) receiver
- Rack mountable
