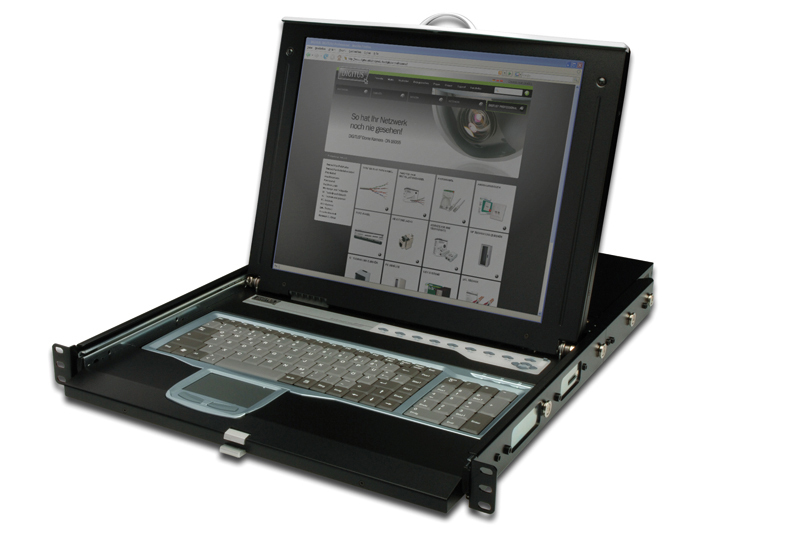

LCD Console with TFT 48,3cm (19"), basic frame
The professionally DIGITUS KVM console offers through his absolute modular construction many of possibly individual applications. The console can be composite for his intended application range. Therefore this console is on the one hand cost-saving as well as upgrade- and rebuildable at every time and warrants a high future-proof.
The console consists out of four main parts which can be ordered separately and comfortable and easy are composed of following elements to match favored control element:
1.The main console, composed of the console-frame with monitor and touchpad
2.The mounting frames for the mounting parts in a cabinet
3.A keyboard
4.A KVM-module
The matching connecting cables for every KVM-module are also available.
The main console:
The main console consists of a rugged metal mounting frame, one 43,2cm (17“) or one 48,3cm (19“) TFT-monitor and a built in touchpad.
Prominent features are:
- Rugged metal frame
- 1U construction
- Modular capability of connecting for touchpad, keyboard, monitor, mounting frame and KVM-module
- Touchpad with simulated scroll-wheel control
Two selectable monitors:
- Monitor 43,2cm (17"),
- Resolution:1280x1024 Pixel at 60/70/75Hz
- Active screen area: 337,9x270,3(mm)²
- Pixel-Pitch:0,264(H)x0,264(V)(mm)
- Brightness: 300(cd/m²)
- Contrast:800:1
Maximum angle: ~80°
- Monitor 48,3cm (19"), (DS-76100)
- Resolution: 1280x1024 Pixel at 60/70/75Hz
- Active screen area: 376,3x301,1(mm)²
- Pixel-Pitch:0,294(H)x0,294(V)(mm)
- Brightness: 300(cd/m²)
- Contrast:800:1
- Maximum angle: ~85°
The KVM-modules:
Several KVM-modules are available for the console which are close to leave nothing to be desired. The connection uses a built in connector from the console frame to the KVM-module.
Available are six modules with an eight or sixteen KVM-ports and with or without IP access.
- Direct connection to a server or to an already existing KVM
- Video resolution up to 1920x1440 pixels; supports DDC2B
- Auto scan function
- Password protection
- TCP/IP access possibility via web browser or VNC client
- Own internal firewall and security management functions
- Special On-Screen-Display menu
- Video resolution up to 1600x1200 pixels at 85Hz
- Dimensions (WxDxH): 43x404x220mm; 1.69x15.91x8.66").
