其他功能
| 接口数量 |
7 |
| Mac兼容性 |
N |
| 遵守工业标准 |
IEEE 1394-1995, 1394a-2000, OHCI 1.1 |
| 数据传输速度 |
480 Mbit/s |
端口 & 界面
| 主机接口 |
PCI |
| IEEE 1394/Firewire(火线)端口数量 |
3 |
性能
| 芯片组 |
VIA6212/6214 + VT6306 |

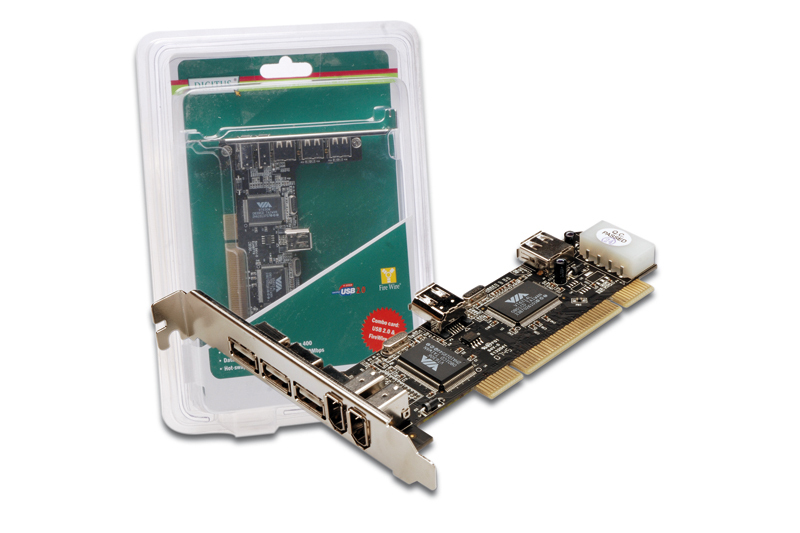

PCI, USB 2.0 / FireWire Combo interface card
- Combo card USB 2.0 and FireWire 400 (1394a), PCI-Express X1
- 3x external USB 2.0 Typ A/female (480Mbps)
- 1x internal USB 2.0 Typ A/female
- 2x external FireWire 400 (1394a) 6-pin ports (400Mbps)
- 1x internal FireWire 400 (1394a) 6-pin port (400Mbps)
- Chipset: VIA6212/6214 + VT6306
- Compliant with USB specification rev. 2.0
- Supports USB high-speed (480Mbps), full-speed (12Mbps), and low-speed(1.5Mbps) data transfer modes
- Compliant with IEEE 1394-1995, 1394a-2000 and OHCI 1.1 standards
- Supports FireWire bus data transfer rates of 100, 200 and 400Mbps
- Hot-swapping feature allows you to connect/disconnect devices without first turning system off
- Support: Windows® 2000/XP/Vista 32/64bit
- Accessories: 1x manual
