以太网LAN特性
| 布线技术 |
10/100Base-T(X) |
| 以太网LAN接口类型 |
Fast Ethernet |
| 以太网的数据传输率 |
10, 100 Mbit/s |
无线局域网的特点
| Wi-Fi标准 |
IEEE 802.11n |
| 无线局域网类型 |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
其他功能
| xDSL connection |
N |
| 机架安装 |
N |
| USB 端口数量 |
1 |
| 电源类型 |
AC/DC |
另外
| 以太网连接器 |
Y |
| 开/关切换钮 |
Y |
| 包括 AC 适配器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
4 |

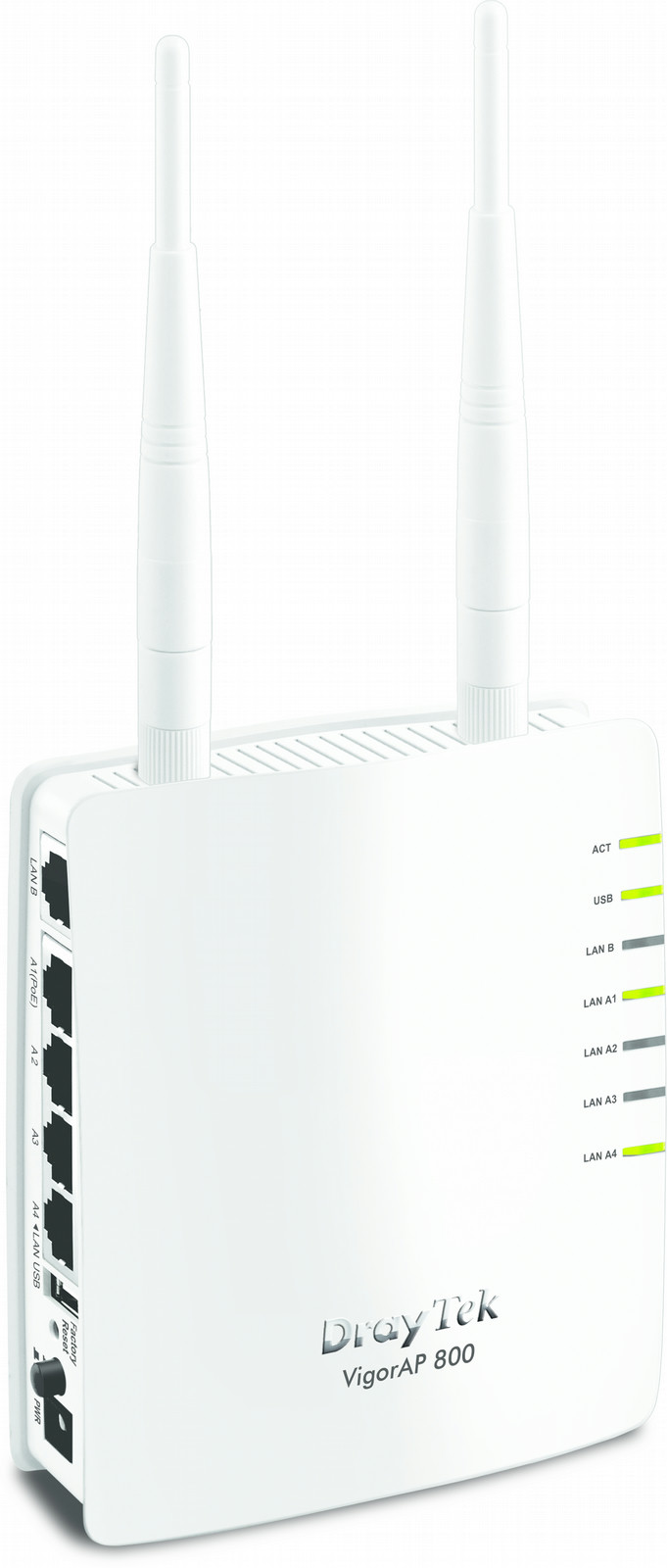

VigorAP 800 - WLAN 802.11 b/g/n, 802.3af PoE, USB 2.0, 5x 10/100 Base-TX RJ-45, 10 W, White
With a stable and extendable wireless network, both business and home/SOHO users can easily utilize and enjoy high-bandwidth applications, such as ERP/CRM, VoIP, video on demand, e-learning (e.g. iTune U), and so much more. The VigorAP 800 is a wireless Access Point (AP) with MIMO technology and Power over Ethernet (PoE) support. That means you can have most advance wireless network standard for the coverage backward compatible with 802.11b/g standard. Moreover, you would have easy AP installation no matter where the power plug is. At last but not least, VigorAP 800 delivers reliable and secure wireless local area networks (WLANs) through the simplified but robust management and configuration. See below for more feature details.
PoE for easy installation
Power over Ethernet (PoE) support eases the installation by running only one cable to VigorAP 800 to deliver both data and power. You can mount VigorAP 800 to the place which is best for extending
coverage without considering if there is ready access to a power plug. Of course, you can also use the included AC adapter if power is available nearby.
WMM for Wi-Fi application prioritization
DrayTek implements intelligent wireless prioritization technology on VigorAP 800 for best utilization of wireless coverage. VigorAP 800 supports Wi-Fi Multi Media standard (WMM). It is a standard created to define Quality of Service (QoS) in Wi-Fi networks. It is a precursor to the upcoming IEEE 802.11e WLAN QoS draft standard, which is meant to improve audio, video and voice applications transmitted over Wi-Fi. WMM adds prioritized capabilities to Wi-Fi networks and optimizes their performance when multiple concurring applications, each with different latency and throughput requirements, compete for network resources.
SSID + 2 VLAN groups for workplace security & parental control
The VigorAP 800 supports 4 separate SSIDs and two virtual LANs (VLANs). You can set certain SSID(s) accessing Internet through either VLAN A or B (LAN_A or LAN_B in WUI). As a result, the VigorAP 800 divides itself into several virtual access points all within a single hardware platform. Many mobile networks deployed at corporate offices, hotels, shopping malls or restaurants can take advantage of this technology to support several applications such as
public Internet access and inventory management. For example, guests of a company could be given wireless access for the Internet, but they are excluded from any access to the internal data server.
For home users, they can set up different authorization for SSIDs to their K12 kids, young adults and parents to avoiding inappropriate contents accessed by underage family members.
Comprehensive WLAN security control
You can obtain the MAC addresses of each wireless client from its configuration utility or operating system. You then enter these addresses into a configuration page of VigorAP 800. When MAC
address filtering is activated, VigorAP 800 performs additional check for wireless clients to prevent network breaking. Clients within the authenticated list will be able to join with the WLAN. Those who are not on the list will be denied while VigorAP 800 receives their request to join the WLAN.
With industry level security standards for wireless user authentication and data encryption, 802.11i (WPA2) offers strengthened and interoperable wireless networking security. The activation of 802.1x RADIUS (Remote Authentication Dial-in User Service) allows you centrally manage and store user names and passwords. You can ensure that only legitimate clients can be associated with corporate RADIUS servers.
WDS for unlimited coverage extendibility
The VigorAP 800 can extend over large areas (alike shopping mall) by its "WDS" (wireless distribution system). WDS takes care of the establishment of WLAN network with "point-to-point" and "point-to-multipoint" bridging and repeater modes. The repeater mode provides extend wireless access to additional clients where there is a relay AP repeats signal from a base AP to distant clients. The bridge-to-bridge mode allows two wired networks to be connected across some distance. The detachable antenna will let you replace with DrayTek antennas for directional signal shaping or mounting flexibility.
Embedded USB printer server
You can connect a printer to the USB port of VigorAP 800 for users from wired PC or wireless network. i.e. The laptop users can access printer for printing. When you are using a pair of VigorAP 800s to make a bridge, the said printer can be installed elsewhere in your office/ home.
