其他功能
支持数据传输率 |
10/100 Mbps |
调制解调器速度 |
128 Kbit/s |
xDSL connection |
N |
远程管理 |
Telnet |
接口 |
LAN, WAN |
USB 端口数量 |
1 |
联网
切换协议 |
Ethernet |
数据链路协议 |
Ethernet |
管理协议 |
Telnet, HTTP/HTTPS |
以太网LAN特性
布线技术 |
10/100Base-T(X) |
以太网LAN接口类型 |
Fast Ethernet |
以太网的数据传输率 |
10, 100 Mbit/s |
安全
支持虚拟专用网 |
IPSec, PPTP, L2TP |
系统事件日志 |
Y |
防火墙 |
Y |
MAC(媒体存储控制)地址过滤 |
Y |
管理功能
通用即插即用(UPnP) |
Y |
支持服务质量(QoS) |
Y |
重启按钮 |
Y |
网上管理 |
Y |
协议
DMZ支持 |
Y |
动态主机配置协议客户 |
Y |
动态主机配置协议服务器 |
Y |
支持网络协议 |
PPPoE, DHCP, PPTP, Static IP |
无线局域网的特点
Wi-Fi标准 |
IEEE 802.11n |
无线局域网类型 |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
另外
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
4 |

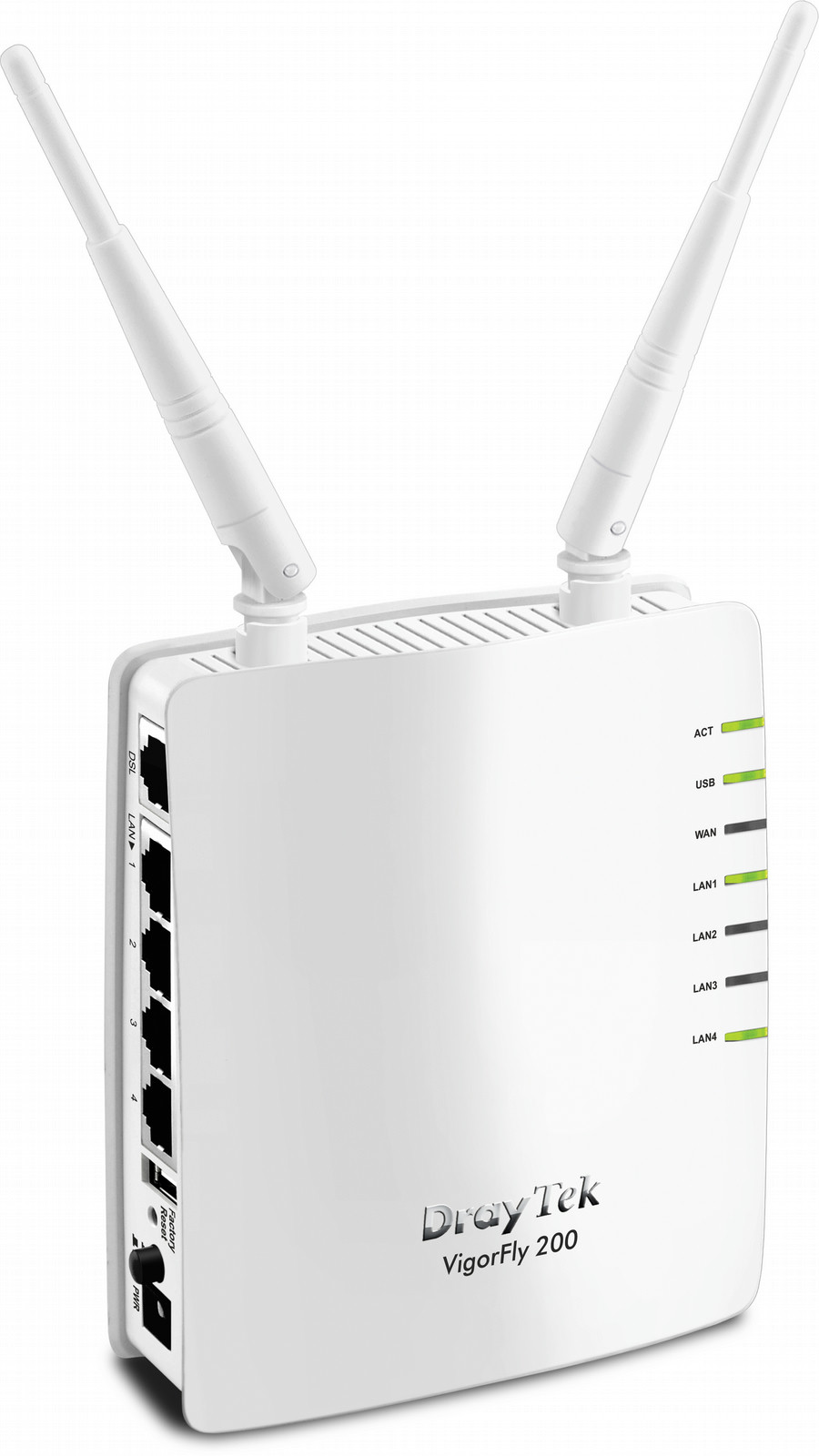

VigorFly200 - WiFi Router, 802.11 b/g/n, 64/128-bit WEP, 4x RJ-45, 1x WAN, 1x USB, 2x Antennas, 3.5G, WiMAX, White
Even though broadband is now widespread in the world, there are still places and times that a viable access to the Internet is not available. You can connect a WIMAX data card to your laptop. However, there is limitation for sharing Internet connection. VigorFly 200 router is what you are looking for.
VigorFly 200 is a compact broadband router with 802.11n WLAN network. Its Ethernet WAN port can connect to VDSL/VDSL2/GPON/G.SHDSL/ADSL2+/ADSL/cable modem while you have fixed line. The NAT throughput can easily manage time-critical multimedia streaming. It's easy for family or friends to hook up PCs via embedded 10/100 Ethernet LAN switch to enjoy multimedia applications. Two antennas provide you with speedy WLAN networking. If you are out of coverage of fixed line, you can directly plug WiMAX USB modem to USB port on VigorFly 200. Or, you can use WiMAX USB modem with VigorFly 200. The sharing WiMAX connection accommodates adequate downstream/upstream capacity for residential needs.
The integrated 802.11n Draft 2.0 WLAN network which offers users stable and reliable wireless connections for high speed multimedia and data traffic by means of WMM (WiFi Multimedia).
While coverage of WLAN network is extended by 802.11n, the Wireless Client list, the encryption methods of WEP/ WPA/WPA2 consist of better wireless security.
Moreover, VigorFly 200 provides enhanced security protection for your network. The DoS/DDoS attack prevention, SPI, Port-redirection, open port, and MAC address filter strengthens the security outside and inside the network.
