端口 & 界面
| DVI端口 |
Y |
| DVI-D接口数量 |
1 |
| 扬声器输出 |
1 |
| USB端口 |
N |
| RS - 232接口 |
Y |
技术细节
| Full HD |
Y |
| LED背光类型 |
Direct-LED |
显示器
| HD 类型 |
Full HD |
| 原机长宽比 |
16:9 |
| 显示类型 |
LCD |

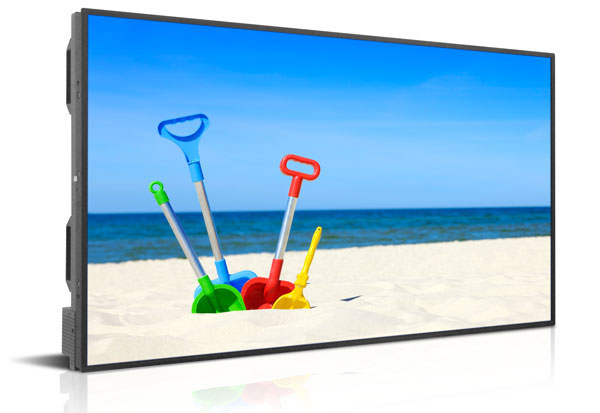

139.7 cm (55 ") , IPS LCD, 1920 x 1080, 5000 nit, 178° / 178°, DVI, RS-232, 62 kg
The DS55LT6 is a 55 inch ultra-bright professional LCD with IPS technology. With a daylight viewable brightness rating of 5000 cd/m² this display features a local dimming LED back light technique for incredible, high contrast picture quality and low power consumption. The DS55LT6 features a 11.5 mm bezel width, perfect for video wall applications in bright environments.
High Brightness LED Backlit with Local Dimming
LED back lighting is both more energy efficient and provides a much brighter image than traditional CCFL backlights. Due to the compact nature of LEDs, displays are also typically thinner. DynaScan’s DS² line of LCDs utilize a proprietary system of LED backlighting which is not only more energy efficient than traditional CCFL backlights, it is also considerably brighter. DynaScan has applied its LED expertise to create a collection of ultra-high brightness LCDs which can easily be viewed in direct sunlight such as storefront windows or outdoor enclosures. The display features a local dimming LED back light technique for a remarkably high contrast picture as high as 1,000,000:1 (dynamic). With direct local dimming, darker areas of an image receive less backlighting than lighter areas, as opposed to CCFL and edge-lit LED backlights which illuminate an entire screen at all times causing blacks and dark areas to appear washed out.
Narrow Bezel for Video Wall Applications
The DS55LT6 features a 11.5 mm narrow bezel display - perfect for video wall applications. With built-in video daisy chaining, a single 1080p source can be used on video walls up to 6x6 in size without the need for any additional external video wall controller. By combining a narrow bezel display with the benefits of a high brightness LED back light, these displays are ideal for indoor environments that receive a high amount of external daylight such as airports, shopping centers and storefront window displays.
Color Temperature and Quality
Ensuring the color and brightness of each screen in a tiled matrix matches can be time consuming and requires additional calibration hardware. Each DynaScan DS55LT6 screen is individually color calibrated to the D65 (6500K) CIE color standard. Not only does this produce a true, natural white, the color of all screens will be uniform.
Blackening Defect Free
Most residential and commercial screens will blacken or result in isotropic failure when the LCD panel overheats. The DS55LT6 is equipped with a high temperature LCD panel capable of withstanding temperatures up to 110˚C (230°F) without blackening - crucial for direct sunlight applications.
