性能
主板元件 |
Micro ATX |
主板芯片组系列 |
AMD |
音频系统 |
Realtek ALC662 |
组件应用 |
PC |
冷却方式 |
Passive |
内存参数
可支持内存时钟速度 |
1066, 1333 MHz |
无错误检测和更正 |
Y |
支持的内存类型 |
DDR3-SDRAM |
内存通道支持 |
Single |
内存插槽类型 |
DIMM |
內存插槽数量 |
1 |
最大内部存储 |
8 GB |
基本輸出輸入系統/BIOS
BIOS内存大小 |
4 MB |
基本输入输出系统类型 |
AMI |
ACPI的版本 |
3.0 |
处理器
SMP(适用于表面安装的封装形式)处理器的最大数量 |
1 |
内置输入/输出系统
USB 2.0接口 |
3 |
并行ATA连接器 |
1 |
ATX电源接头 |
Y |
TPM(可信任安全平台模组)接口 |
Y |
SATA II连接器数量 |
4 |
周边(莫仕)电 源连接器(4针) |
1 |
CPU风扇接口 |
Y |
机箱防盗接口 |
Y |
EATX电源接头数量 |
1 |
前面板音频接头 |
Y |
扩展槽
PCI 插槽 |
2 |
PCI Express x16 插槽 |
1 |
背板输出端口
PS/2连接埠数量 |
2 |
耳机输出端口 |
1 |
麦克风/音频输入插孔 |
Y |
VGA(D-SUB)端口数量 |
1 |
另外
主板晶片 |
AMD A45 FCH |
图形适配器 |
Radeon HD 6290 |
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
1 |

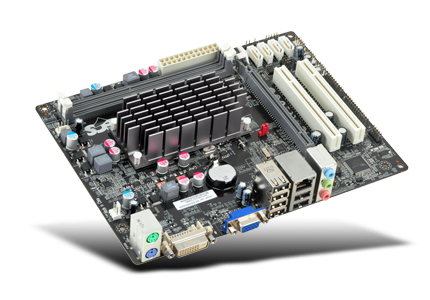

AMD C-60 (1GHz, 1MB L2 Cache), AMD Radeon HD 6290, DDR3 DIMM 1333/1066 MHz, SATA II, USB 2.0, AMI BIOS
- ECS HDC-M/C-60 offers a low power solution, embaded AMD® Brazos C-60 dual Core processor with AMD Radeon™ HD 6290 Graphics, provides higher performance graphics. It features DirectX® 11 for accelerated Blu-Ray 3D and DivX decoding, and supports multiple monitors to deliver up to a 40% increase in productivity. The HDC-M/C-60 provides the optimized performance with energy efficiency;
- Microsoft Windows 8 support;
- Applied Solid Capacitor for CPU side;
- ESD Protection prevent your computers from electrostatic discharge damage to enhance its durability and lifespan;
- Supports DirectX® 11 for accelerated Blu-Ray 3D and DivX decoding;
- Supports GUI UEF & Multi-Language BIOS;
- ECS MIB III - A friendly interface for overclocking;
- ECS Intelligent EZ Untility : eBLU, eDLU, eOC, eSF;
- Free Bundle: Norton Internet Security, CyberLink PowerDVD, CyberLink PowerDirector 9.
Durathon Technology - Motherboard quality you can trust.
When it comes to the quality and durability of your motherboard, ECS goes above and beyond industry standards to ensure that you have a motherboard that will last long and always continue to out perform the competition. Trust only motherboards built with Durathon Technology.
Motherboard Intelligent BIOS III (M.I.B III)
Providing the most intelligent and convenient way to adjust the clock/ voltage settings of CPU and memory and get the extra performance in advanced.(Certain models could only adjust GPU setting according to chipset limitation.)
M.I.B. III brings the same convenience interface of overclocking as M.I.B. II, it also comes with advance range of frequency tuning for system performance and superior gaming capability.
M.I.B. III
M.I.B. III brings the same convenience interface of overclocking as M.I.B. II, it also comes with advance range of frequency tuning for system performance and superior gaming capability.
EZ BIOS
The most convenient tool to adjust BIOS in graphical interface. Designed with user-friendly interface including auto OC, boot priority, security function and windows 8 support. (Auto OC only for OC available models. )
UVD 3
The newest UVD3 (Unified Video Decoder) hardware acceleration equipped in FUSION APUs is able to play 3D Blu-ray and high definition movies easily.
Support DirectX 11
DirectX 11 features the latest technologies of Compute Shaders, Direct 2D, Multithreaded Rendering and Tessellation for create rich worlds, realistic characters and more fluid gameplay.
Integrated AMD Dual-Core Processor C-60
AMD Dual-Core C-60- APU, the combination of CPU and GPU, features Radeon HD 6290 graphics and UVD 3 to provide best gaming performance at lower power.
Integrated AMD RadeonTM HD 6290 Graphics
AMD Radeon HD 6290 graphics core is used in 9W APU SKU that support HD video, DirectX® 11 compliant and 3D graphics acceleration.
PCI EXPRESS 2.0
The exceptionally increased interconnect bit rate from 2.5GT/s up to 5.0GT/s would effectively eliminates the bottle neck of the system performance and brings the most terrific computing experience from the present to the future.
DVI Output
A video interface standard designed to maximize the visual quality of digital display devices such as flat panel LCD computer displays and digital projectors. DVI transmits a digital signal from a digital location in the graphics card to a digital location on the display screen. So you get the full clarity and stability of liquid crystal technology — with sharp, clear pixels.
Windows® 8 Hardware Certification
Support the latest Windows 8 technology which provides touch-enabled control, Apps and can connect with the cloud to connect with your files, photos, people, and settings, wherever you sign in.
Certified For Windows® 7
Windows® 7 platform introduces a number of manageability improvements that can reduce total cost of ownership by helping to increase automation, improve user productivity, and provide flexible administrative control to meet compliance requirements. It is more user-friendly and has been optimized to consume less system resources with Windows® 7 as well. Furthermore, the VT technology is enhanced to support real-time multimedia application including video playback and 3D games.
ROHS
Choose an environment-friendly, fully RoHS-compliant ECS product as the foundation for keeping harmful substances out of our ecosystem.
ErP Ready
ECS Motherboards have been certified by ErP of European Union. Stand by mode and off mode not to exceed 0.50W consumption to save energy and maintain sustainable environment.
