性能
| 接收机灵敏度 |
300Mbps Typical -68dBm, 54Mbps Typical -73dBm, 11Mbps Typical -84dBm |
天线
| 增益 |
3 dBi |
| 天线接口类型 |
RP-SMA |
| 发射功率 |
13 - 16 dBmW |
无线局域网的特点
| 支持无线局域网数据传输率 |
1, 2, 5.5, 6, 9, 11, 12, 24, 36, 48, 54, 72, 150, 300 Mbit/s |
| Wi-Fi标准 |
IEEE 802.11n |
| 无线局域网连接 |
Y |
| 无线局域网类型 |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
另外
| 数据传输率（最大） |
300 Mbit/s |
| 无线连接 |
Y |
| 连接方式 |
Wireless |

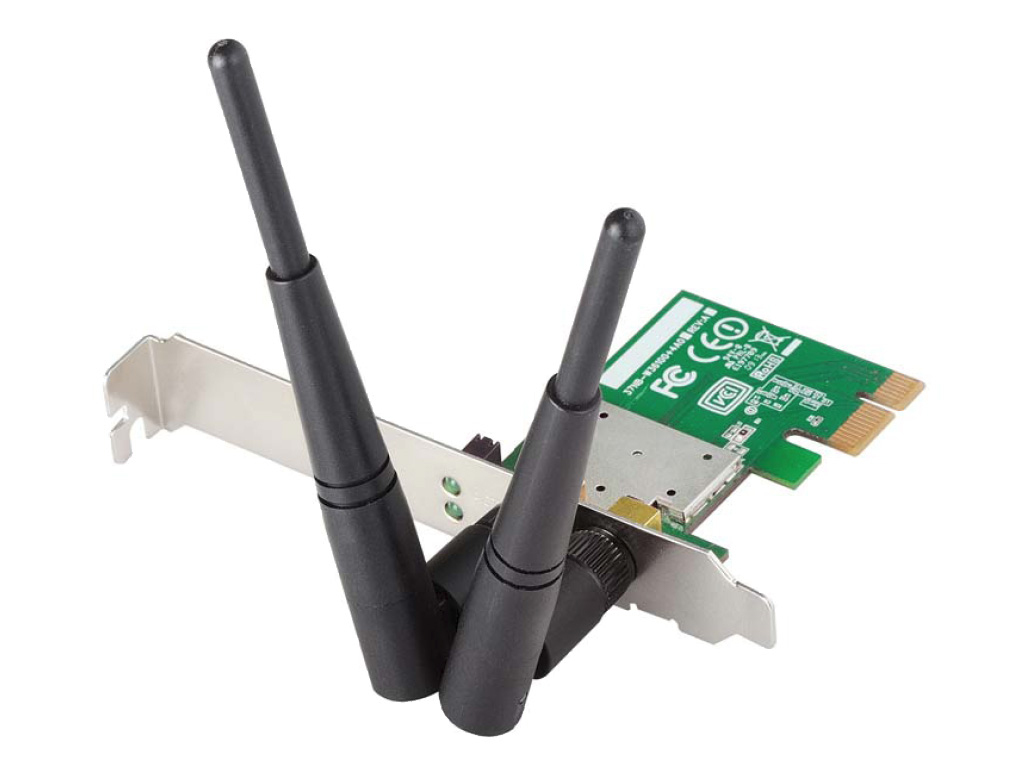

300Mbps Wireless 802.11b/g/n PCI Express Adapter
- Complies with wireless 802.11b/g/n standards with data rates up to 300Mbps
- Increases wireless coverage 4 times farther
- Built in 3dBi high-gain detachable antennas
- Includes multi-language EZmax setup wizard
- Supports 64-/128-bit WEP, WPA , WPA2 encryptions and WPS-compatibilities.
EW-7612PIn is a wireless PCI Express adapter that provides a simple and easy way to add or upgrade wireless connectivity to your desktop. This wireless PCI Express adapter supports higher data rates up to 300Mpbs when connected to a wireless 802.11n device. You can also connect to any public wireless hotspot for Internet access to retrieve email, surf web sites or use instant messaging. EW-7612PIn gives you the freedom to join the network.
Complies with wireless 802.11b/g/n standards with data rates up to 300Mbps
With the latest wireless 802.11n technology, EW-7612PIn can increase coverage up to 4 times more and reduce "dead spots" within the wireless range. The transmission data rate can reach up to 300Mbps when connected to wireless 802.11n devices, making signals travel farther and wireless connections guaranteed when compared to a standard wireless 802.11b/g network.
First-class Reliability
The EW-7612PIn’s exceptional chipset offers increased bandwidth and more functionality than other standard PCI network adapters. The adapter is specifically designed to carry the full bandwidth capacity of the PCI Express bus of 2.5Gpbs, thus eliminating collisions and latencies that exist with current 32- and 64-bit PCI bus architectures.
Wireless Security
EW-7612PIn supports 64-/128-bit WEP data encryption that protects your wireless network from eavesdropping. It also supports WPA (Wi-Fi Protected Access) features that combine IEEE 802.1x and TKIP (Temporal Key Integrity Protocol) technologies. Furthermore, this adapter supports WPA2 and WPS functions, with WPA2 providing a stronger encryption mechanism through AES (Advanced Encryption Standard), which is a requirement for some corporate and government users. Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of a wireless network. EW-7612PIn supports software with WPS-compatible configurations. When both ends of the wireless connection use wireless solutions with WPS, it automatically configures the wireless network with robust WPA data encryption and authentication.
Supports multi-language EZmax setup wizard
The included 16-language EZmax setup wizard and friendly UI will walk you through configuring EW-7612PIn to your wireless network.
