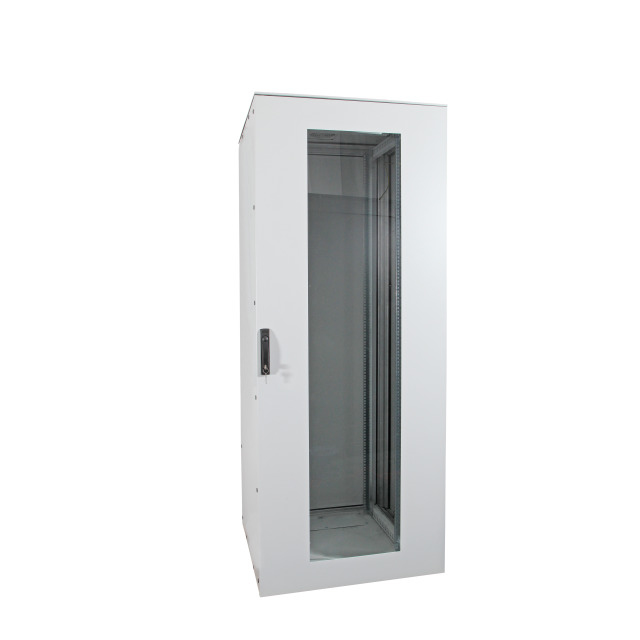

EFB Elektronik 692527TIP54 Freestanding rack 27U Grey rack

Network Cabinet 27U, IP54 For industrial purposes and similar harsh environments
Max. load 800 kg
Solid frame made of patented aluminum profile for maximum tightness and robustness and low weight
Frame profiles connected via mounting blocks, allowing disassembly or replacement of individual parts in damage
Inside 4 x 19“ profile rails (2 front-, 2 rear-sided), galvanised, depth adjustable in 25 mm spacing
Front door 1-part, with window of certified safety glass and turning lever IP54 with profile half-cylinder (exchangeable by customer)
Rear door steel sheet, one-part, with turning lever IP54 and profile half-cylinder (exchangeable by customer)
Front- and rear door with 4-point-locking and sealings of Polyurethane foam, door opening angle 120°
Side walls with sealings of Polyurethane foam, 16 x screwed, with blind covers
Internal earthing of all cabinet sections
Roof and bottom with screwed metal plates for cable entry (ca. 365 x 85 mm) and sealings of Polyurethane foam, e.g. for accommodating PG glands
Paint finish RAL7035, light grey
Scope of supply: 1 x set of captive nuts (PU 20 pcs), 4 x levelling feet M10, 2 x key
