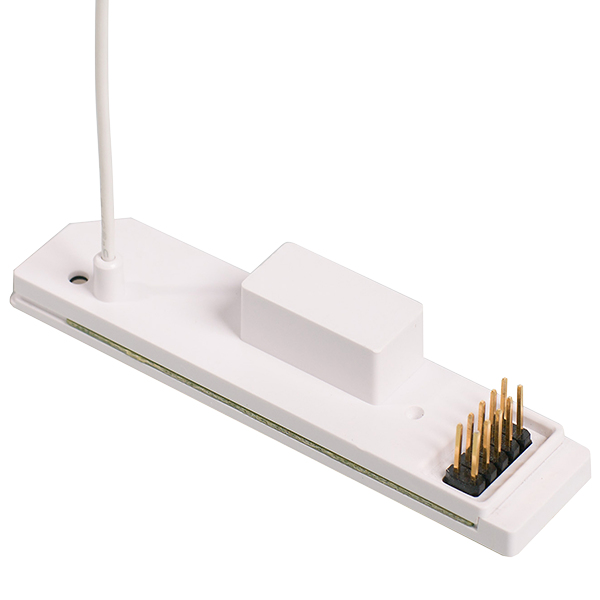

Ei Electronics Ei100MRF 868.499MHz

230VAC, 50Hz, 868.499MHz, +10dBm, 100 m, White The Ei100MRF is an optional add-on RadioLINK+ module for the Ei160e and Ei2110e series Alarms. The module simply plugs into the designated slot in the base of the Alarm head. The immediate flashing LED indicates that the module has been fitted correctly.

The Ei100MRF module facilitates wireless interconnection with up to 12 RadioLINK devices. It also faciliƟes a hybrid communication of hardwired and wireless connections.

The Ei100MRF module is a SRD using a TI transceiver device to transmit, receive and repeat the RadioLINK RF protocol. This ensures a robust “mesh” of RF signals and reliable paths of communication.

The house coding feature confines the RF communication to designated RadioLINK devices only, thereby avoiding the inadvertent activation of neighbouring Alarm RF systems.

The Remote Alarm Learn entry feature allows the installer to re- activate the entire RF system house coding from one device. Additional devices can then be added and house coded accordingly.

RF monitoring of the signal paths is facilitated through a “buddy” system. Each device will “buddy up” to at least one other device. If the signal path fails, the “buddy” will transmit a communication lost signal. Information such as alarm events, fault events, test activations, and Alarm head removals can now be downloaded using the RadioLINK tool.

- RF Upgrade for Mains Powered “e” Series Alarms
- Simple plug in modular design
- Tricolour LED to indicate RF status
- Interconnect up to 12 hardwire and/or wireless communication Alarms/devices
- Transmits, receives and repeats RF specific data
- Multi-path communication protocol
- Unique House Coding confines communicaƟon to
- selected RadioLINK devices
- Remote Alarm Learn entry
- RF Monitoring
- Alarm Status & Parameter information download via RadioLINK tool
- Powered through the Alarm head
- 5 Year Guarantee
