产品特点
RF 射频传输范围 |
868.499 MHz |
RF 射频传输频率 |
100 m |

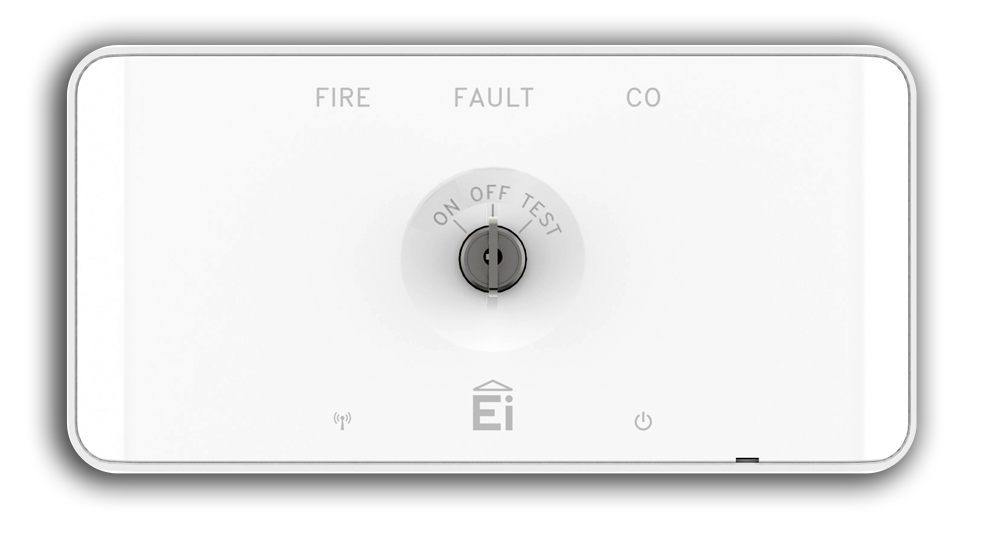

RadioLINK Panel Interface Module
The Ei414 can deliver either a pulse signal or a continuous switched signal via the relays to the universal transmitters. A dip switch also provides delayed timed response. The specific signal type will be determine by the requirement of the OEM universal sensor.
The Ei414 contains x3 mains rated relays (rated up to 250V AC / 5 Amps). The relay volt contacts operate on mains power, or on battery backup cells in the event of a mains failure.
The Ei414 has a keyed 3-way position switch. In the “on” position, the Ei414 will respond to a “Fire” or “CO” signal. In the “off” position, the EI414 will not respond to any RadioLINK signals. In the “test” position, the Ei414 will only respond to a “button test” signal or a “repeated remote test signal (e.g. from an Ei450 or Ei412). On receipt of button test signal, the relevant relay (fire or CO) will activate. On receipt of a repeated remote test signal, the fire relay will activate.
The Ei414 uses RadioLINK multi-repeater, multi-path technology to deliver very robust and reliable RF signal coverage. While designed primarily to interface with a Warden Call or similar telecare System, the versatility of the Ei414’s electrically isolated contacts means it can be used to switch many other OEM devices.
