产品特点
旋转 |
0 - 45 ° |
不确定性 K |
3 dB |
金刚石圆锯片内孔 |
25.4 mm |
金刚石圆锯片直径 |
180 mm |
金刚石圆锯片 |
Y |
切割高度 @ 90° |
25 mm |
切割高度 @ 45° |
17 mm |
锯片直径 |
180 mm |
包括锯片 |
Y |
空载转速 |
3000 RPM |
声功率级 |
107 dB |
声压级 |
94 dB |
600W, 230V/50Hz, Ø180mm, 3000min-1, IP54, swivel 0 - 45°, 485 x 775 x 335mm, 25kg

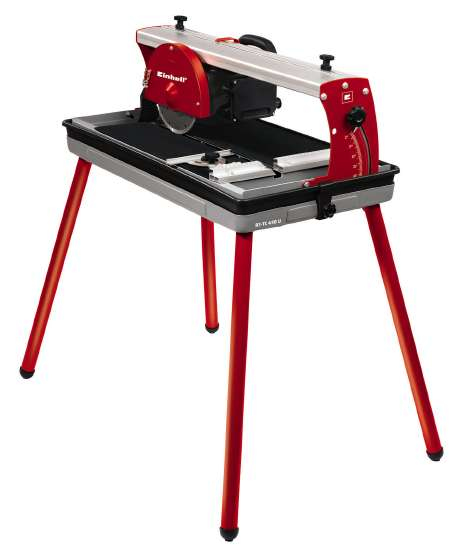

The RT-TC 430 U radial tile cutting machine is a reliable, high-quality machine for cutting wall tiles and floor tiles quickly and exactly to size. Its robust 400 W motor has ample power for driving the 180 mm diameter turbo diamond cutting wheel speedily through the tiles. The swiveling motor head of the RT-TC 430 U has a motor guide with a 4-fold ball bearing and is suitable for cutting materials up to 430 mm long. The large work table with non-slip rubber surface rests on a robust base frame. Water for cooling the cutting wheel is conveyed from the solid water collection tank by an integrated water pump. Miter cuts, double miter cuts and longitudinal cuts can be performed with just a few moves thanks to the motor head which can be infinitely swiveled from 0° to 45° and the aluminium angle stop which can be adjusted exactly to the degree.
- Robust base frame
- Sturdy handle
- Integrated water pump
- Large work table with non-slip rubber support
- Solid water collection tank made of sheet steel
- Robust, aluminium angle stop adjustable to the degree
- Motor guide with 4-fold ball bearing
- Infinitely swiveling motor head from 0° - 45°
- Turbo diamond cutting wheel
