产品特点
| 空载转速 |
5000 RPM |
| 切削深度为(90º) |
120 mm |
| 声功率级 |
106.8 dB |
| 声压级 |
93.8 dB |
| 振动排放 |
4.4 m/s² |
| 刀齿数目 |
48 |
| 不确定性 K |
3 dB |
| 斜角切割 |
45 - 0 ° |
| 切割宽度 90° x 90° |
120 x 60 mm |
| 切割宽度 90° x 45° |
83 x 60 mm |
| 切割宽度 45° x 90° |
120 x 34 mm |
| 切割宽度 45° x 45° |
80 x 34 mm |
| 最大切割高度 |
60 mm |
| 吸尘装置 |
Y |
| 锯片直径 |
210 mm |
| 包括锯片 |
Y |
| 旋转 |
-47 - 47 ° |
| 不确定度 K |
1.5 m/s² |
| 主轴锁 |
Y |
Ø210mm, 48 Pieces, 1400W, 5000min-1, 230V/50Hz, Mitre cut 45°-0°, 93.8dB, 106.8dB, 3dB, LED, 355mm x 540mm x 300mm, 8.2kg

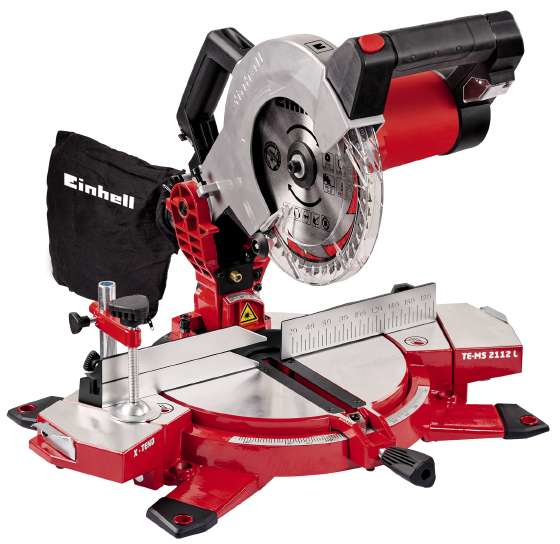

The TE-MS 2112 L crosscut and miter saw is a versatile and powerful device that delivers excellent performance in the sawing of workpieces made from wood, coated panels and plastics. The high-quality turntable comes with an exact angle adjustment facility for angular cuts that can be latched single handedly in various positions. The saw head can be tilted to the left to enable miter cutting without any problems. The TE-MS 2112 L crosscut and miter saw is supplied with a mains-powered laser that marks the cutting line and allows fast, accurate placement. The mains-operated LED lighting offers the best view of the workpiece. A sturdy clamping device ensures that the workpiece is fixed securely in position. The X-Tend workpiece supports with one-hand adjustment allows long workpieces to be sawn, while an integrated limit stop enables precise, repeatable cuts. The high-grade carbide-tipped precision saw blade saws cleanly and powerfully. The sawdust bag keeps the workplace clean and a transport brace ensures easy, safe transport.
- Turntable with precise angle setting for angular cuts
- Saw head tilts to the left for miter cutting
- X-Tend workpiece supports with one-hand adjustment
- Integrated limit stop for multiple cuts
- High-grade carbide-tipped precision saw blade
- Includes laser (mains-powered) for precise guidance while cutting
- Includes LED lighting (mains-operated) of the cutting area
- Clamping device for holding the workpiece securely in position
- Includes sawdust bag to keep the workplace clean
- The transport brace ensures safe mobility
