产品特点
| 吸尘装置 |
Y |
| 空载转速 |
5700 RPM |
| 锯片内孔 |
30 mm |
| 切削深度为(90º) |
75 mm |
| 切削深度为(45º) |
48 mm |
| 包括锯片 |
Y |
| 刀片厚度 |
2.4 mm |
| 刀齿数目 |
24 |
| 产品类型 |
Table saw |
| 锯片直径 |
30 mm |
重量和尺寸
| 深度 |
730 mm |
| 高度调节范围 |
0 - 75 mm |
| 重量 |
21509 g |
| 宽度 |
593 mm |
| 高度 |
340 mm |
| 包装重量 |
25400 g |
能量控制
| 输入功率 |
1500 W |
| 交流电(AC)输入电压 |
230 V |
| 交流电(AC)输入频率 |
50 Hz |
1200W, 230V, 5700rpm

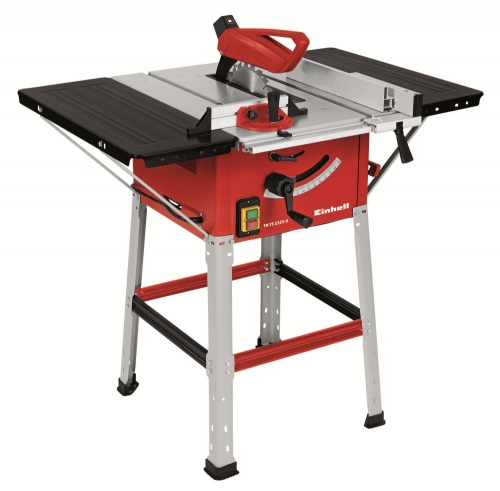

The TH-TS 1525 U bench-type circular saw is a powerful entry-level device with which ambitious DIY enthusiasts can make exact longitudinal cuts and angle cuts in solid wood, fiberboard and many other materials.. It is supplied with a carbide-tipped precision saw blade, the height and angle of which can be adjusted individually. The powder-coated table width extension enables particularly wide workpieces to be sawn without any problem. The TH-TS 1525 U bench-type circular saw has a parallel stop with eccentric clamp as well as a cross stop, allowing precise, accurate angle cuts to be achieved at any time. The saw blade guard and the housing of the machine also are provided with a chip extractor connection to ensure a clean workplace, while the push stick that is required for safety reasons has its own holder, where it is always within easy reach. The sturdy base frame for stability is already included in the scope of supply.
