其他功能
独立h/v同步 |
Y |
数字垂直频率 |
59 - 61 Hz |
数字水平频率 |
31 - 76 kHz |
复合同步 |
Y |
显示器
垂直扫描范围 |
56 - 86 Hz |
有效显示区域(宽×高) |
432 x 324 mm |
HD 类型 |
Not supported |
原机长宽比 |
4:3 |
显示类型 |
LCD |
端口 & 界面
DVI端口 |
Y |
VGA(D-SUB)输入端口 |
1 |
USB端口 |
N |
另外
水平扫描范围 |
31 - 92 kHz |
以太网连接器 |
N |

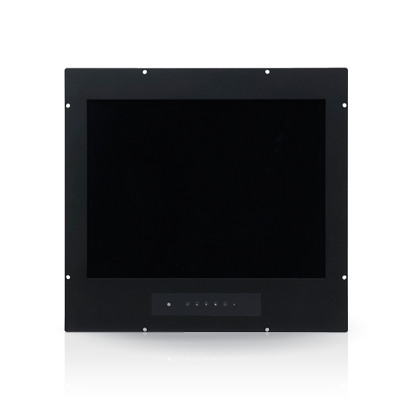

54.102 cm (21.3 ") (54cm), 1600x1200, 4:3, 245cd/m², 1.6M, 8ms, VGA, DVI-D, 60W, IP65, 13kg, Black
Durable and Reliable
The DuraVision FDU2101 complies with the conditions for temperature, humidity, and vibration as defined in the IEC 60945 international standard for maritime navigation and radiocommunication equipment and systems. IP65 compliance means it can withstand dust ingress and are protected against low-pressure water jets. To make the electronic substrates moisture-proof a coating processing is applied. For long-term reliability, no cooling fan or other easily breakable moving parts are used.
True Color Display
True 8-bit color display produces 16.7 million colors. Several color properties can be adjusted in the on-screen display menu including brightness, contrast, color temperature, gamma, hue, saturation, and gain.
Wide Dimming Range
The dimming range is a wide 0 cd/m2 up to the maximum brightness. Because brightness is controlled by the backlight only, visibility is maintained and gradations are displayed smoothly even at a low brightness.
Panel with Wide Viewing Angles
An LCD panel with VA (vertical alignment) technology features wide viewing angles that minimize changes in contrast and gradation to maintain excellent visibility when the screen is viewed from an angle. This allows more than one person at a time to view the monitor.
Approvals from Classification Societies
The DuraVision FDU2101 has approval from four maritime classification societies: LR (UK), DNV (Norway), ABS (USA), and ClassNK (Japan). They are under application for approval for GL (Germany), CCS (China), and BV (France).
