显示器
| 有效显示区域（宽×高） |
1039.7 x 584.8 mm |
| HD 类型 |
Full HD |
| 垂直扫描范围 |
50 - 85 Hz |
| 显示类型 |
LCD |
端口 & 界面
| VGA（D-SUB）输入端口 |
1 |
| 复合视频 |
1 |
| 分量视频(YPbPr/YCbCr)输出 |
1 |
| DVI端口 |
Y |
| S-Video输入 |
Y |
| S- Video输出 |
Y |
| DVI-I接口数量 |
1 |
| 复合视频输出 |
1 |
| USB端口 |
Y |
| RS - 232接口 |
Y |
| HDMI端口数量 |
1 |
| 分量视频(YPbPr/YCbCr)输入 |
1 |
其他功能
| 点时钟扫描频率 |
165 MHz |
| BNC输入端口 |
2 |
另外
| 水平扫描范围 |
15 - 100 kHz |
| 以太网连接器 |
N |

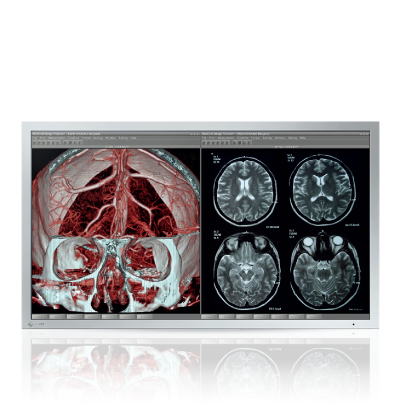

119.38 cm (47 ") LCD, Full HD, 700 cd/m², 1000:1, 1920 x 1080
This 2 MP widescreen monitor is ideally suited for viewing DICOM X-ray images or serving as a repeater monitor in surgical environments. A wide range of input and output signals, the combining of pictures, and pre-calibrated gamma models permit tailoring the monitor to multiple specialties. The fanless design and the waterproof, easy-to-clean front panel enable usage in sterile hospital environments.
Wide Viewing Angles for Multiple People Use
Thanks to the wide viewing angles, images can be viewed simultaneously by several people with the highest quality reproduction and minimal color shift.
Diagnostic Precision with Factory Adjustment
To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tone on the production line to offer monitors fully compliant with DICOM Part 14.
Full High-Definition
With a native resolution of 1920 x 1080, the monitor can display original, full HD images in 1920 x 1080 resolution without blurring or distortion.
Dual Picture Viewing Modes
With Picture-in-Picture (PiP), Picture-and-Picture (PaP), and Picture-over-Picture (PoP) functions, archived images or patient data can be reviewed simultaneously during an operation.
Fanless Silent Design
Engineered to dissipate heat without a fan, thus keeping distracting noises and circulation of dust and germs out of the operating room while ensuring the controlled laminar airflow remains undisturbed within the room.
Arm Mountable VESA Compliance
VESA compliance to be attached to existing mounting accessories.
Customer Assurance with Medical Standards
RadiForce monitors meet the strictest medical, safety, and EMC emission standards.
Quick Brightness Stabilization for Instant Viewing
EIZO's fully automated stability function makes use of an internal backlight sensor to quickly stabilize the brightness level at startup and to compensate for fluctuations caused by variations in ambient temperature and the passage of time.
Consistency with DICOM Part 14 Calibration
RadiForce monitors are calibrated to comply with DICOM Part 14 to offer rendering consistency over time.
Colors to Fit the Physician's Preference
The color, hue, saturation, brightness, contrast, temperature and tones of the display can be adjusted to best fit the physician's color preference.
Wide Range of Input and Output Support
EIZO offers multiple input signals to allow connections with both legacy and state-of-the-art endoscopic systems without the need of other optional devices or costs. With loop-through output support, the monitors are also ideally suited for multi-monitor integration or archiving in the operating room.
LCD Panel Protector for Easy Cleaning
The panel protector secures the screens from scratches, damages and liquids and alleviates cleaning and disinfection of the front surface.
