能量控制
| 电源输入频率 |
50 Hz |
| 最大电流 |
10 A |
| 额定输入电压 |
230 - 240 V |
| 能力 |
2400 W |
230-240VAC, 50Hz, 2400W, 10A

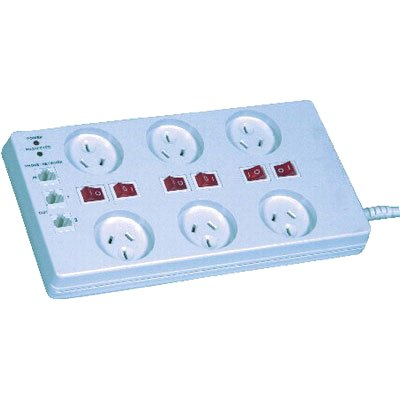

6-Way Individually Switched Power Outlet with Mains Filter and Dual Telephone Line Protection
When placed under a computer desk, its easy to accidentally kick a plug pack out of its socket if using a standard type power board. This specially designed filter board features recessed sockets to prevent that from happening and, of course, from making potentially dangerous contact with prying fingers due to partially exposed mains connectors. The board also includes dual telephone line filtering for modems/faxes, and separate LED surge and power indicators. Each mains socket is individually switched with illuminated rocker switches. Great for switching off peripheral devices without having to physically unplug them - an inconvenience when using low-cost power boards. Overload protection and a circuit breaker are also included.
- Power Rating: 230-240VAC 50Hz
- Current: 10A (max.)
- Handling: 2400W
- Protection Mode: A-N, A-E, N-E
- Surge Current: 6,000A (2/20u sec.)
- Clamping Voltage: <775V (at 50V)
- Energy Absorption: 175j (10/1000u sec.)
- Surge Protection: Metal Oxide Varistors
- Response Time: <15 nanosecond
- Differential Capacitance: 400pf (1KHz)
- Filtration Protection: EMI/RFI
Telephone Line Protection:
- Sockets: RJ-45 with reducers for RJ-12
- Filter Type: Ceramic Gas Discharge Tube
- Surge Current: 1200V (1KV/u sec.) Line to Line
- Impulse Discharge Current: 10KA (8/20u sec.)
- Capacitance: <5pF
- Clamping Voltage: 600V
