联网
| 以太网的数据传输率 |
1000, 100, 10 Mbit/s |
显示器
| 有效可视范围 |
476.6 x 268.1 mm |
| 触摸屏技术 |
Surface acoustic wave |
端口 & 界面
| 麦克风/音频输入插孔 |
Y |
| VGA（D-SUB）端口数量 |
1 |
| Line-out |
Y |
存储介质
| 硬盘接口 |
Serial ATA |
| 存储介质类型 |
HDD |
| 硬盘转速 |
5400 RPM |
| 硬盘容量 |
320 GB |
| 总存储容量 |
320 GB |
处理器
| 处理器频率 |
1.86 GHz |
| 处理器高速缓存 |
1 MB |
内存参数
| 内置存储器 |
2 GB |
| 内存类型 |
DDR3 |
| 最大内部存储 |
4 GB |
另外
| 以太网连接器 |
Y |
| RS-232接口 |
2 |
| 主板晶片 |
Intel NM10 Express |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 图形适配器 |
GMA 3600 |

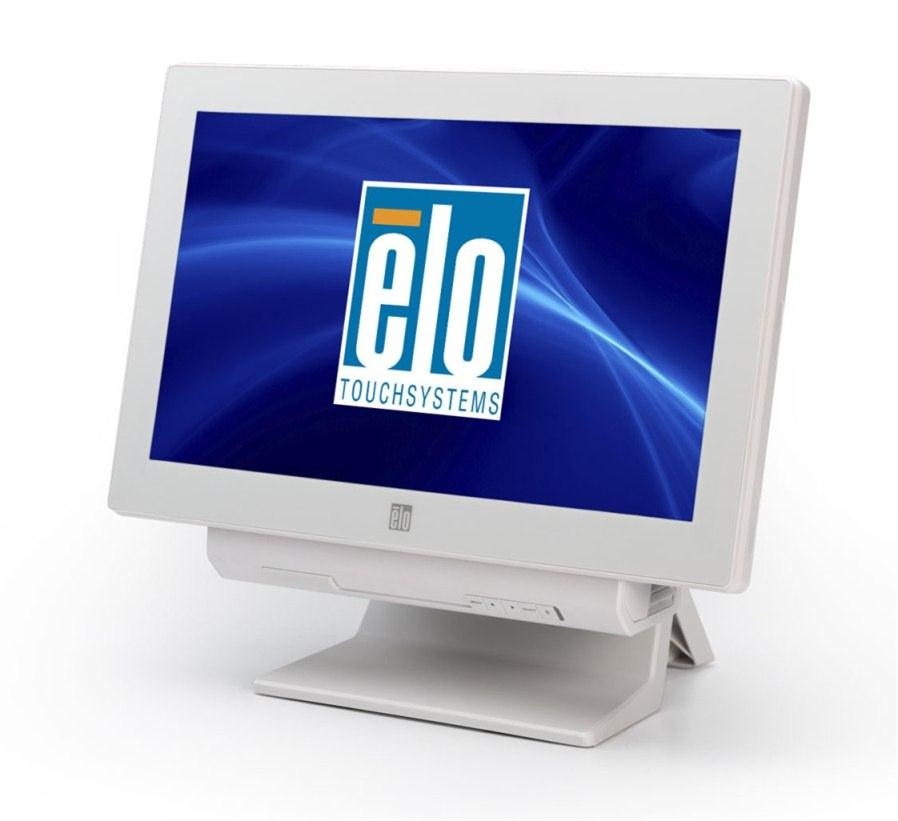

22C2 All-in-One Desktop Touchcomputer, Intel Atom Dual-Core N2800 1.86GHz, Intel NM10 Express, Intel GMA 3600, 2GB 1333MHz DDR3 SO-DIMM, 320 GB SATA HDD 2.5" 5400RPM, 54.61 cm (21.5 ") 1920 x 1080, iTouch Plus, Windows 7 Pro SP1 (32-bit)
The new C-Series Rev.B All-in-One touchcomputers continue to bring the same style, flexibility and functionality to high-end point-of-sale (POS), point-of-information (POI), retail and hospitality businesses as the previous versions. The C-Series AiO’s provide highly configurable, ruggedized touchcomputers in two screen sizes: 19-inch and 22-inch, plus the choice of industry leading Elo touchscreen technologies, now featuring iTouch Plus Zero-bezel Multi-touch Surface Acoustic Wave. The C-Series touchcomputer family has been developed to meet the demanding needs of a wide variety of point-of-sale (POS), point-of-information (POI), and point-of-service venues, including retail and hospitality display units, customer loyalty systems, internet access sites and mobile kiosks.
The C-Series All-in-One touchcomputer platform offers big, bright LED HD displays in a wide-aspect ratio. This makes the C-Series an excellent choice for retail point-of-information, counter top product demonstration or customer information systems. In addition, hospitality host and seating systems that depend on an accurate display of restaurant layouts can utilize the wide screen of the C-Series and the additional screen space available to display their seating/ floorspace. The C-Series is RoHS compliant, Energy Star 5.2 certified, and includes an enclosure design with an IPX1 spill-resistant rating, protecting the unit from liquid drips and spills. The C-Series is an excellent fit for a wide variety of retail and hospitality settings.
The C-Series touchcomputers bring flexibility with your choice of connectivity, serviceability with easy access to key components, and a choice of processing power. In addition, an array of field-installable peripherals, spill-resistant sealing, and a full range of standard of input/output port connections make the C-Series both versatile and powerful.
The C-Series is engineered for flexibility, with optional memory and storage configurations, as well as scalable computing power featuring two high-performance processor configurations:
