内存参数
| 内存时钟速度 |
1600 MHz |
| 内存类型 |
DDR3L-SDRAM |
| 內存插槽数量 |
2 |
| 内存插槽类型 |
SO-DIMM |
| 最大内部存储 |
16 GB |
| 内置存储器 |
4 GB |
存储介质
| 固态磁盘驱动器的容量 |
128 GB |
| 总存储容量 |
128 GB |
| 硬盘接口 |
Serial ATA |
| 存储介质类型 |
SSD |
端口 & 界面
| 串口数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| DC-IN插口 |
Y |
| VGA（D-SUB）端口数量 |
2 |
处理器
| 处理器高速缓存 |
4 MB |
| 处理器频率 |
3.1 GHz |
| 核心的处理器数量 |
2 |
显示器
| 有效可视范围 |
434.88 x 238.68 mm |
| 触摸屏技术 |
Capacitive |
联网
| 无线局域网类型 |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| 以太网的数据传输率 |
1000, 100, 10 Mbit/s |
| 无线局域网连接 |
Y |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 以太网连接器 |
Y |
| 系统总线 |
5 GT/s |
| 图形适配器 |
HD Graphics 4600 |
19.5'', 16:9, 1920 x 1080 60Hz, Intel Core i3-4350T 3.1 GHz, Intel HD Graphics 4600, 128 GB SSD, 4 GB 1600MHz DDR3L, USB 3.0, RJ-45, VGA
<b>Overview</b>

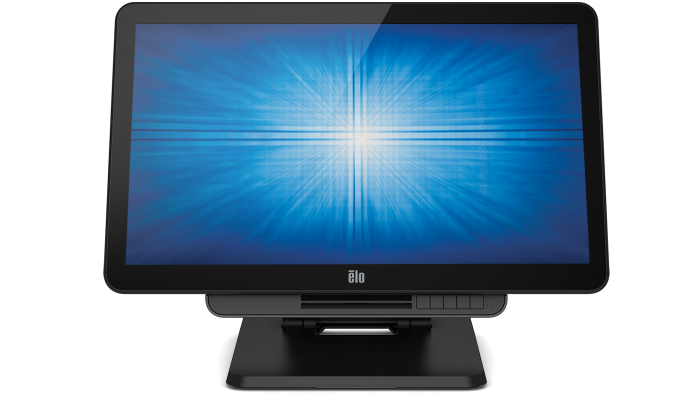

The Elo 20-inch X-Series is an innovative, all-in-one, widescreen touchscreen computer that offers a sleek form factor with flexibility, power and endless configuration possibilities. With a compact design, the X-Series is ideal for applications in any retail, self-service or hospitality environment that requires a small footprint POS terminal or kiosk. The highly versatile platform provides maximum configurability and offers you unprecedented freedom of choice in the design of your AiO system.
<b>Configurability.</b>
A wide range of processor, interface, storage, expansion, operating system and mounting options allow you to further tailor the X-Series to meet your needs. The seamless zero-bezel display measures 19.5 inches diagonally is available with 10-touch TouchPro™ projected capacitive (PCAP) technology offering an edge-to-edge glass design with fast and extremely sensitive responses right out of the box. With processor options that scale from the value-based Intel Celeron J1900 to the high-performance Intel Core i7, the Elo X-Series is one of the most powerful systems in its class.
<b>Versatility.</b>
Every X-Series system is built with transactions in mind, and the wide assortment of peripheral options reflect just that. Whether for staff- or guest-facing applications, easily attach any combination of up to three peripherals, including an EMV reader, a near-field communication (NFC/RFID) reader, mag stripe reader (MSR), barcode reader or fingerprint scanner to the bezel of the X-Series via a universal snap-in connector. To enhance customer engagement at checkout, choose from a wide array of customer facing displays ranging from 2-line to 20-inch. For self-service applications, transform the Elo X-Series from counter-top terminal to kiosk with the optional wall-mount kit.
<b>Reliability.</b>
Rigorously tested and backed by a three-year warranty, the X-Series delivers superior quality and reliability. The splash-proof housing and rugged retail-hardened design easily withstand the adverse conditions associated with most commercial environments. The unique, modular chassis provides easy access to storage and memory for quick, tool-less service.
<b>Other features.</b>
- Small footprint, retail-hardened design
- Field serviceable design allows for quick troubleshoot and fix, no tools needed
- Full range of standard connectivity ports for retail POS, POI and hospitality applications with option to add expansion module if needed
- Removable base with 100mm VESA mounting
- Kensington lock
