存储介质
| 硬盘尺寸 |
2.5 " |
| 硬盘容量 |
320 GB |
| 硬盘转速 |
5400 RPM |
| 总存储容量 |
320 GB |
| 存储介质类型 |
HDD |
| 硬盘接口 |
Serial ATA |
端口 & 界面
| Express卡插槽 |
N |
| DVI端口 |
N |
| PoweredUSB 介面 |
Y |
| Line-out |
Y |
| 麦克风/音频输入插孔 |
Y |
| VGA（D-SUB）端口数量 |
1 |
显示器
| 触摸屏技术 |
Surface acoustic wave |
| 有效可视范围 |
337.92 x 270.36 mm |
处理器
| 处理器高速缓存 |
2 MB |
| 核心的处理器数量 |
4 |
| 处理器频率 |
2 GHz |
内存参数
| 内存时钟速度 |
1600 MHz |
| 内存插槽类型 |
SO-DIMM |
| 內存插槽数量 |
2 |
| 内存类型 |
DDR3L-SDRAM |
| 内置存储器 |
4 GB |
联网
| 无线局域网连接 |
Y |
| 无线局域网类型 |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
另外
| 图形适配器 |
HD Graphics |
| RS-232接口 |
2 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

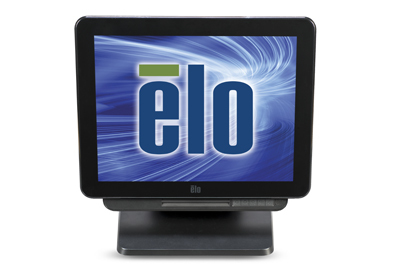

43.18 cm (17 ") TFT LCD, IntelliTouch Plus SAW, Intel Celeron J1900 (2 GHz, 4-Core), RAM 4GB, 320GB HDD, Gigabit Ethernet, WiFi 802.11 b/g/n, Bluetooth 4.0, Windows 7 Pro SP1 (64-bit), Black
The new Elo X-Series 15-inch and 17-inch All-in-One (AiO) touchcomputers bring style, flexibility and functionality to point-of-sale (POS), point-of-information (POI) and point-of-service applications within retail and hospitality environments. Configuration customization, serviceability and performance combine to deliver touchcomputing that adapts to your existing hardware, software and connectivity requirements.
The X-Series AiO touchcomputers are available with industry-leading touchscreen technologies from Elo including AccuTouch micro-bezel 5-wire resistive, IntelliTouch surface acoustic wave, IntelliTouch zero-bezel surface acoustic wave (SAW) and IntelliTouch Pro Projected Capacitive (PCAP).
The fan-less models utilize the Intel Celeron Quad-Core processor for environments where noise may be an issue. Higher performance, the fan-cooled models feature 4th Generation Intel Core i3, i5 and i7 processors and HD2500 graphics. A wide array of field-installable peripherals, spill-resistant sealing and a range of input/output port connection options make the X-Series a versatile and powerful AiO solution.
The X-Series configuration choices meet the diverse needs of a wide variety of POS, POI and point-of-service venues, including retail and hospitality display units, customer loyalty systems and in-store kiosks, just to name a few.
