设计
支持的主板外形 |
ATX |
格式要素 |
Midi-Tower |
类型 |
PC |
CS-045B ECB701-B + PSU Cyclops 405W

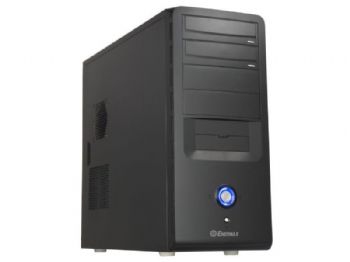

Enermax presents its new Mid Tower Case : Spider.Equipped with Enermax Cyclops Power Supply, 405W Passive PFC one 6 pin PCI EXPRESS connector.
On the side of front panel there are small openings to assure better cooling performance for your PC.At the bottom of the front panel there are Power(backlighted with Blue Crystal LED) and Reset button.In the middle, covered by a plastic panel there are 2 USB 2.0 Ports and I/O Audio (Both for AC97 and Intel HD AUDIO 5.1 and 7.1), and a 3.5 inches opening for FDD.In the upper part of the frontal panel, you will find 4 Drive Bay 5.25" (the first two of them with flip bay cover), for mounting multi function panel and optical devices such ad DVD/CD-ROM.
The body of the case has been strengthened, and the whole product looks tougher.Up to 4 optical units (5.25" ) and 6 HDD (3.5") could be placed inside this case.Of course there is still an opening for a 3.5 external FDD unit.Both ATX and Micro ATX can be fitted into this case, as well as 7 expansion slot PCI, are available.These are completely tool less
Inside the case there are no fan but there is the possibility to fit 2 extra fan (1 in front and one in rear).These fan could be 8/9/12cm either.On side panel an Air Duct, is present according to the Intel CAG 1.1 specifications
Spider also includes an Enermax Cyclops Power Supply, 405W .It could be used to power Multi Core - Intel Core 2 Duo/Quad ed AMD Athlon 64X2, Phenom X3 ed X4.Your PC will be always safe, thanks to the following protection :OVP(Over Voltage Protection), OCP(Over Current Protection), OPP(Over Power Protection), SCP(Short Circuit Protection)
Thank to the smart fan control you can alway have silentness, even with high rate of load.
