性能
| 脉冲宽度调制 (PWM) 支持 |
Y |
| 最大气流 |
85.43 cfm |
| 最小气流 |
33.69 cfm |
| 气流 |
145.15 m³/h |
| 最低空气压力 |
0.819 mmH2O |
| 散热管数量 |
5 |
| 最大空气压力 |
4.812 mmH2O |
| 噪音水平(低速) |
15 dB |
| 噪音水平(高速) |
27 dB |
| 转速(最小) |
800 RPM |
| 转速(最大) |
2000 RPM |
| 类型 |
Cooler |
| 适用于 |
Processor |
| 风扇直径 |
120 mm |
| 处理器插座 |
Socket AM3, Socket AM3+, Socket AM2+, Socket FM2, Socket AM2, Socket AM4, LGA 2011-v3 (Socket R), LGA 1151 (Socket H4), Socket FM2+, Socket FM1 |
| 散热管直径 |
6 mm |
重量和尺寸
| 散热片尺寸(宽x深x高) |
65 x 135.2 x 160 mm |
| 风扇尺寸(宽×深×高) |
120 x 120 x 25 mm |
120 mm, 250 W TDP, 4-pin PWM, 138.7 x 111.9 x 160 mm, 860 g

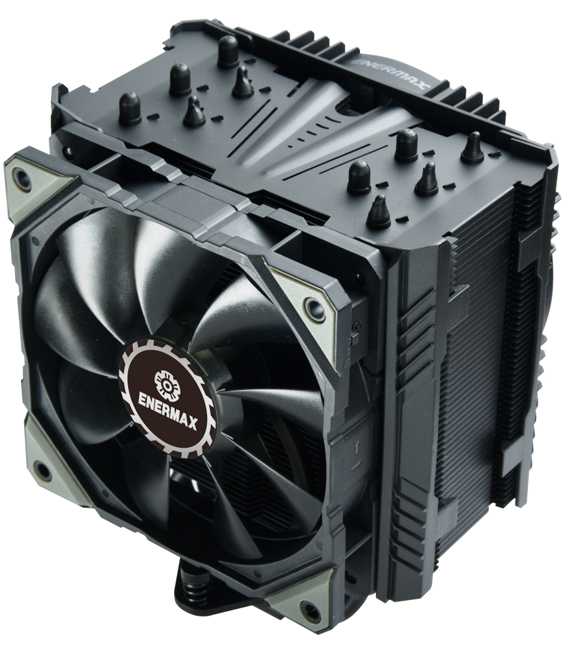

The ETS-T50 AXE is a high-performance CPU cooler with a cooling capacity up to 250W TDP and leading innovative technologies.
The asymmetric design with five 6 mm heat pipes with the Heat Pipe Direct Touch technology ensures a quick heat transfer and allows the installation of high RAM modules.
The cooler is equipped with a 12cm ENERMAX fan with patented DFR ™ (Dust Free Rotation) technology. By spinning in reverse at full speed for 10 seconds at the start, the fan reduces dust accumulation.
The 360° rotatable Air Guide directs the airflow behind the cooler to quickly release the hot air from the system.
The patented Pressure Differential Flow (PDF) Design pushes the air through a conical channel, improving the air flow and increasing the cooling performance by up to 15%.
The ETS-T50 AXE is available in two versions. The ETS-T50 AXE with D.F.Pressure fan for pure cooling performance and The ETS-T50 AXE with Vegas Trio fan, equipped with the patented circular LED frame with a total of 36 LEDs (red, green, blue) providing incredible light effects.
