设计
3.5" 托架数量 |
7 |
5.25" 托架数量 |
3 |
侧窗 |
N |
格式要素 |
Midi-Tower |
类型 |
PC |
扩展插槽数 |
7 |
最大CPU散热器高度 |
179 mm |
最大显卡长度 |
415 mm |
冷却
支持的后部风扇直径 |
120 mm |
最大前部风扇 |
2 |
安装的后部风扇 |
1x 120 mm |
支持的底部风扇直径 |
120 mm |
液体冷却能力 |
Y |
最大底部风扇 |
1 |
最大顶部风扇 |
2 |
端口 & 界面
USB 3.0(第 1代3.1)Type-A 端口数量 |
2 |

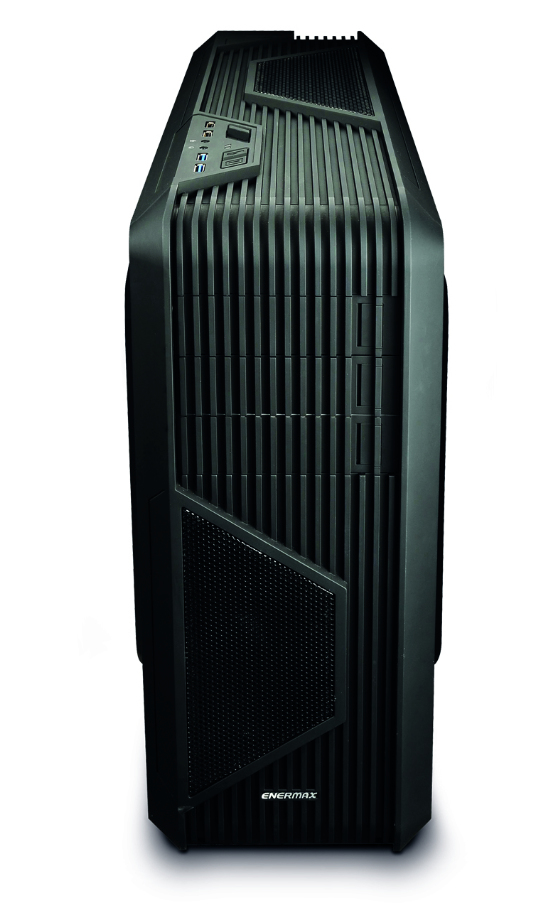

iVektor, ATX/mATX, Midi Tower, USB 3.0, SECC, Black
<b>Design</b>
<b>iVektor – Soft Grip. Drive Hard.</b>
Multi-functional and race-inspired Midi Tower with maximum usability and high-performance cooling for gaming rigs and workstations.
<b>Soft-Grip Coating</b>
Innovative rubber skin which creates a quality and stylish appearance. Positive side effect: The new soft-grip coating from Enermax has a shock-absorbing effect, reduces noise and prevents the case from fingerprints and scratches.
<b>Compatibility</b>
<b>Multi-GPU Support</b>
Seven extension card slots allow for the installation of up to three graphics cards.
<b>Flexible HDD/SDD Cage</b>
Multifunctional upper HDD/SSD cage with movable side bracket. When removing the bracket, you can create space for oversized graphics cards with up to 415mm length and improve the air circulation inside the case. In center position, the bracket allows for the installation of four 2.5” HDD/SDD. Mounted in the outer position, up to four 3.5” HDD/SSD can be installed.
<b>Cooling</b>
<b>Powerful Cooling System</b>
One 12cm rear fan included. Many options to upgrade the cooling system with numerous additional fans: two 12cm fans in the front, two 12cm fans at the top and one 12cm fan at the bottom.
<b>3-step Speed Control</b>
RPM control of the integrated 12cm rear fan and one optional fan. The speed can be controlled in three steps with a switch on the top of the case.
<b>Ready for Water-Cooled Systems</b>
Supports 240mm radiators at the top. Two tubing holes at the back for the integration of high-performance water cooling systems.
<b>Data Storage Management</b>
<b>Sophisticated Data Storage</b>
The case accommodates up to 7 data storage devices (HDD & SSD): One cage for three 3.5” HDD and one multi-functional cage to accommodate either four 3.5” HDD/SSD or four 2.5” HDD/SSD.
<b>Protection Against HDD Vibration</b>
HDD rails with rubber pads effectively reduce vibrations.
<b>Ultra High-Speed Data Transfer</b>
Two USB 3.0 ports on the top panel for a lightning-fast data transfer with up to 5Gb/sec.
<b>Installation, Cable Routing & Operation</b>
<b>Patented Slide-In™ System for ODD</b>
The new screwless Slide-In™ system from Enermax is the quickest and easiest way to mount optical disk drives. After pushing the ODD into the drive bay, it gets locked automatically.
<b>Well-spaced Cable Management</b>
Openings and clips for a clean and hidden cable routing. With 30mm clearance behind the mainboard tray and punched out side panel.
<b>Effectively Shielded Against Dust</b>
Integrated dust filters in the front, top and bottom of the case.
<b>Bottom-Mounted PSU</b>
Comfortable cable routing and optimized cooling performance thanks to bottom-mounted power supply. With anti-vibration rubber pads and cleanable dust filter at the bottom of the case.
<b>Toolless HDD Installation</b>
Quick and easy installation system for Hard Disk Drives (HDD) and Solid State Drives (SSD) with tool- and screwless rails.
