无线局域网的特点
Wi-Fi标准 |
IEEE 802.11n |
无线局域网类型 |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
无线局域网连接 |
Y |
联网
频段 |
2.4 GHz |
芯片组 |
Atheros AR9220 |
另外
连接方式 |
Wireless |
数据传输率(最大) |
300 Mbit/s |
802.11 b/g/n, 2.4GHz, mini PCI, 600 mW

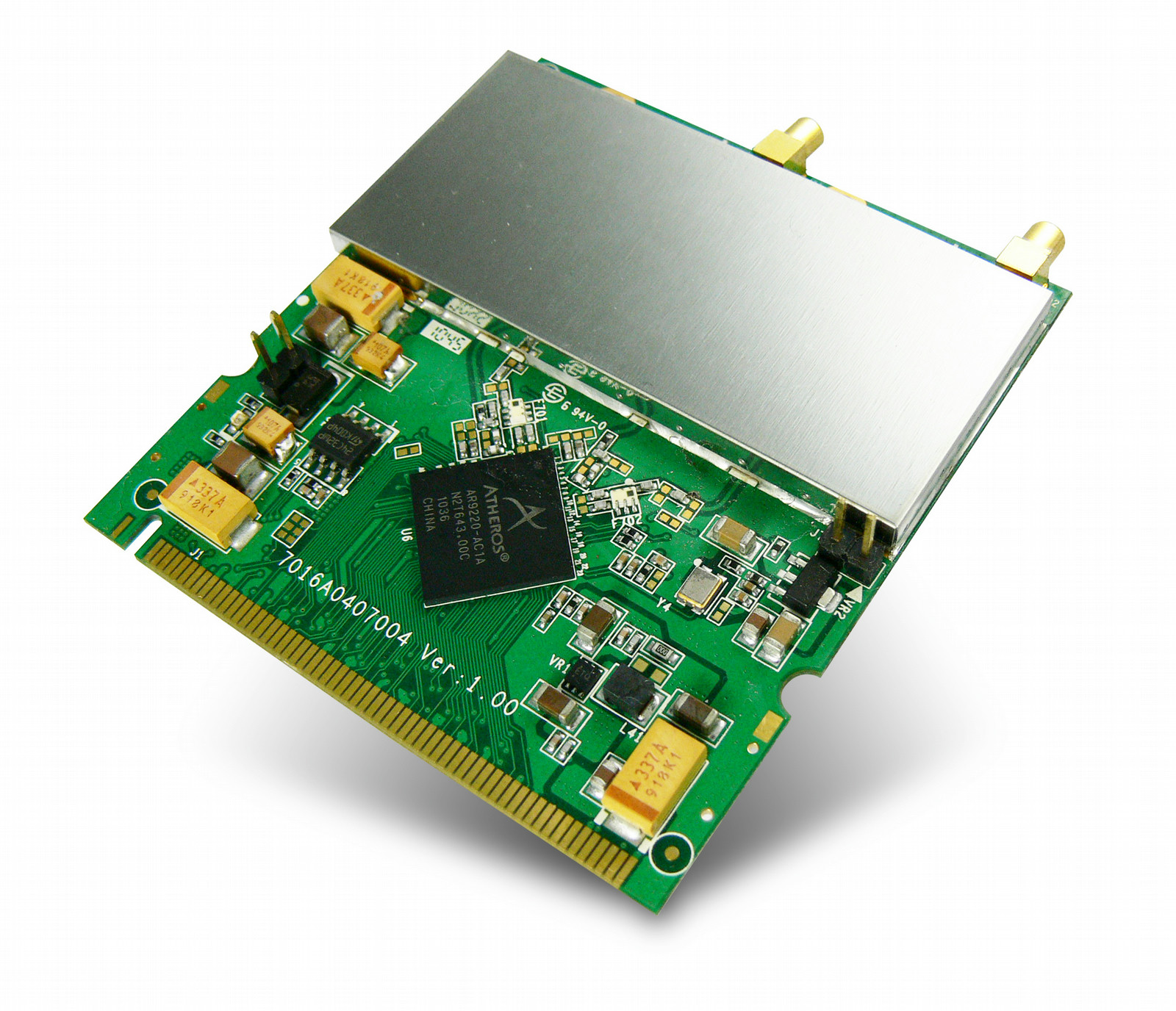

High output RF power (up to 28dBm, 600mW) and high speed are essential when designing your embedded platform application. EnGenius Technologies has introduced the EMP9605H high power 2.4GHz 802.11 b/g/n 300Mbps mini-PCI module. Using the latest in wireless RF technology expertise, EnGenius has fine-tuned the mini-PCI radio to be the longest and most powerful RF module on the market today. The slim form factor design is ideal for both indoor and outdoor embedded applications. The EMP9605H encompasses 802.11b, 802.11g, and 802.11n networking technology, and will be the latest long-range, affordable mini-PCI solution for your wireless embedded systems.
<b>600mW HIGH OUTPUT WIRELESS POWER</b>
- 28 dBm maximum Tx power
- 2 MMCX antenna connectors
- Ensures robust signal to overcome long distances
- Offers superior WiFi coverage over leading brands
<b>802.11 B/G/N SUPPORT (2.4GHz SUPPORT)</b>
- Provides 2.4GHz wireless frequency
- 2T2R MIMO technology
- Supports up to 300 Mpbs data rate
- 64/128-bits WEP, WPA, WPA2 encryption
- Hardware base IEEE 802.11i encryption engine
<b>INTELLIGENT QUALITY OF SERVICE (QOS) TECHNOLOGY</b>
- Support 802.11e standard for wireless multimedia enhancements
