性能
| 频道频宽 |
40 MHz |
| VLAN支持 |
Y |
| 发射功率 |
15 dBmW |
| 以太网的数据传输率 |
10, 100 Mbit/s |
| 示踪 VLAN |
Y |
| 运转模式 |
Access Point / Client Bridge / Client Router/WDS |
| 无线局域网数据传输率 |
300 Mbit/s |
| 2.4 GHz |
Y |
| 5 GHz |
N |
| 自动无线分布系统 (WDS) |
Y |
| 网络标准 |
IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u |
| 内置存储器 |
32 MB |
| 闪存 |
8 MB |
| 扩频方法 |
DSSS |
| 支持服务质量（QoS） |
Y |
| 重启按钮 |
Y |
| 认证 |
FCC, CE, IC |
| 调制 |
16-QAM, 64-QAM, BPSK, QPSK |
| 频段 |
2.4 GHz |
天线
| 集成天线 |
Y |
| 天线增益水平（最大值） |
10 dBi |
| 天线数量 |
2 |
其他功能
| 垂直波束宽度 |
21 ° |
| 水平波速宽度 |
70 ° |
| 重新调整/皮重功能 |
Y |
| 网路功能 |
Fast Ethernet |
能量控制
| 输入电压 |
24 V |
| 电源需求 |
24V AC / 0.6A |
| 支持以太网（PoE） |
Y |
设计
| 放置 |
Wall |
| 內置式 |
N |
| 液晶显示器指示灯 |
Y |
| 国际保护（IP）代码 |
IP65 |
安全
| 支持安全算法 |
128-bit WEP, 256-bit WEP, 64-bit WEP, SSID, WPA, WPA2 |
| 支持 SSID 数量 |
8 |
| MAC（媒体存储控制）地址过滤 |
Y |
重量和尺寸
| 尺寸（宽 x 深 x 高） |
84 x 260 x 55 mm |
| 深度 |
260 mm |
| 重量 |
380 g |
| 宽度 |
84 mm |
| 高度 |
55 mm |
协议
| 管理协议 |
SNMP v1/v2c, MIB I/II |
| 动态主机配置协议客户 |
Y |
| 动态主机配置协议服务器 |
Y |
环境条件
| 运行湿度范围(H-H) |
0 - 90% |
| 储存相对湿度范围（H - H） |
-30 - 80% |
另外
| 输出电源 |
800 mW |
| 产品色彩 |
White |
| 数据传输率（最大） |
300 Mbit/s |
| 以太网路(RJ-45)连接接口数量 |
2 |
| 运行温度范围（T - T） |
-20 - 70 °C |

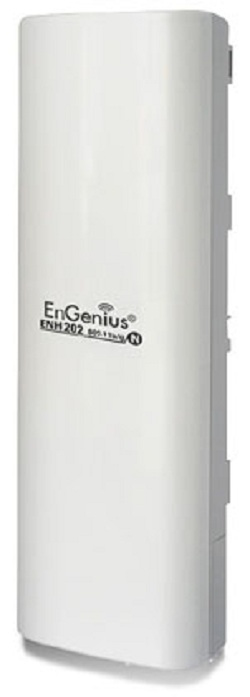

ENH202 - Wireless Outdoor 800mW Long-Range Multiple Client Bridge/AP
ENH202 is a high-speed long-range outdoor 802.11n Wireless Access Point (WAP) / Bridge that operates on 2.4GHz band that is compliant with the IEEE802.11b/g/n standards and features a MIMO (Multiple In/Multiple Out) antenna design delivering a wireless data rate of up to 300Mbps.
The versatile, high-speed ENH202 can function as a Wireless Access Point, Client Bridge, Client Router, or Wireless Distribution System (WDS) Bridge. Utilizing its integrated internal 10dBi antenna and its high power output of up to 800mW, the ENH202 delivers higher throughput across an extended range making it an ideal CPE offering for a Wireless Internet Service Provider.
ENH202 also features a robust security feature set that includes support for 64/128/256-bit WEP encryption, WPA/WPA2 Personal and Enterprise encryption, 802.1x authentication, hidden SSID and MAC address filtering. The multiple operation modes of the ENH202 make it an ideal solution for creating a high-speed, stable and highly secure outdoor wireless link between buildings, connecting surveillance cameras, or connecting outdoor digital sign to an office network.
