以太网LAN特性
| 布线技术 |
10/100Base-T(X) |
| 以太网LAN接口类型 |
Fast Ethernet |
| 以太网的数据传输率 |
10, 100 Mbit/s |
管理功能
| 通用即插即用（UPnP） |
Y |
| 支持服务质量（QoS） |
Y |
| 网上管理 |
Y |
无线局域网的特点
| Wi-Fi标准 |
IEEE 802.11n |
| WLAN的数据传输率（最大值） |
150 Mbit/s |
| 无线局域网类型 |
IEEE 802.11n |
其他功能
| xDSL connection |
N |
| 带宽 |
2.4 GHz |
| 机架安装 |
N |
| 频段 |
2.4 & 5 GHz |
天线
| 天线类型 |
external |
| 天线增益水平（最大值） |
2 dBi |
| 天线数量 |
1 |
另外
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
5 |

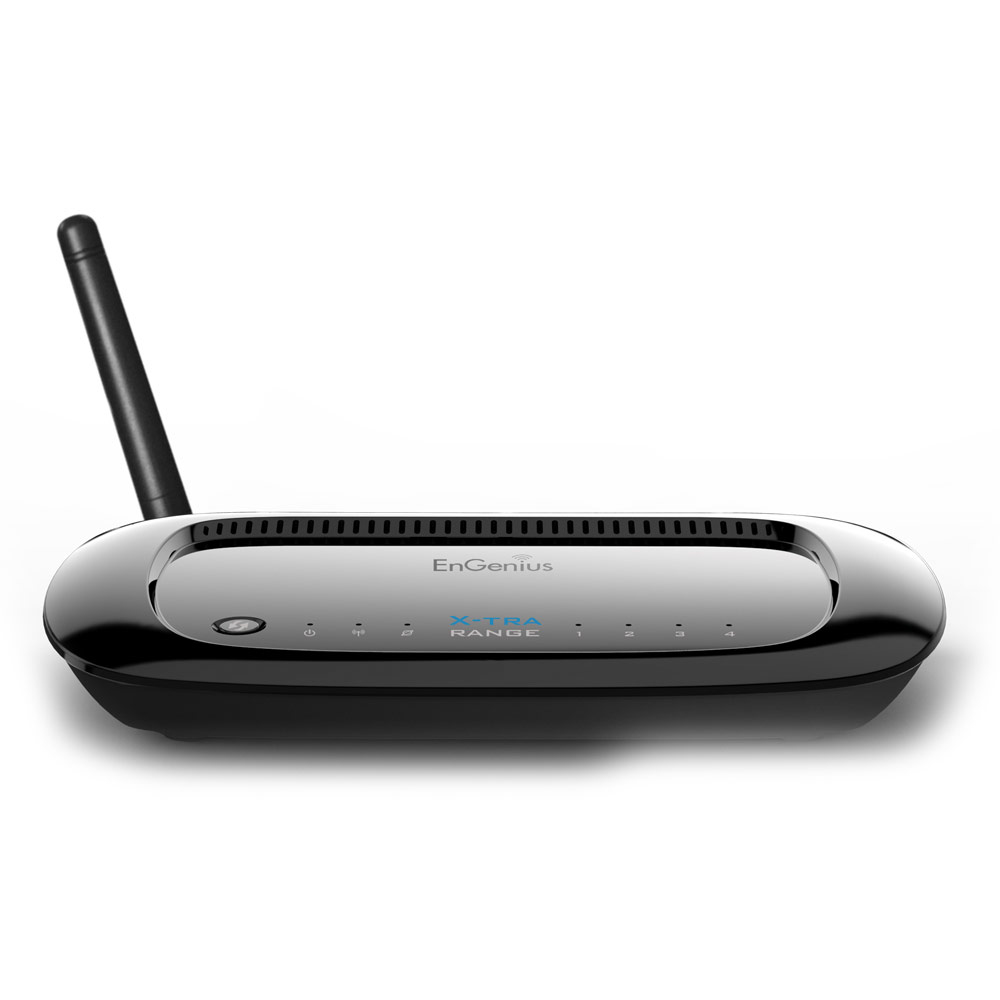

ESR150H, 150 Mbps, Wireless N, 4 x Fast LAN RJ-45 + 1 x WAN RJ-45, 0.7kg, Black
The Engenius XtraRange ESR150H is a high-powered 200mW, 2.4GHz, 4-Port Wireless-150N Router with wireless speeds up to 150Mbps. This sleek, cost-effective Wireless-N router offers robust wired and wireless connectivity and performance for computers, smartphones, tablet PCs and home entertainment devices in a home or small office.
The ESR150H’s high transmit power capability, up to 200mW (23dBm) is designed to deliver extended range and expanded coverage so your family can connect more devices throughout and around your home and take advantage of all the free and subscription-based Internet services now available on Blu-ray players, game consoles, set top boxes, HDTVs and more.
The ESR150H also supports several security features and settings including industry standard wireless encryption, such as WEP, WPA/WPA2 to prevent unauthorized access to the network; an advanced SPI (Stateful Packet Inspection) firewall to block malicious software from the Internet from accessing networked devices; MAC Address filtering to grant only known computers and devices network access; and URL filtering to block access to unwanted or offensive websites.
Users can also enable up to four separate and discrete SSIDs (Service Set Identifiers) or ways to access the network. This gives families the ability to offer friends or visitors Internet access or access to specific devices, like printers, while protecting other networked computers or hard drives in the home that may contain private information.
This smart router also employs intelligent QoS (Quality of Service) to prioritize bandwidth-intensive applications like HD video and gaming or bandwidth sensitive applications like VoIP (Voice over IP) telephone calls for optimal connectivity.
Differentiators:
- 200mW high output power doubles wireless range with better coverage
- Built-in 4-Port Switch to connect Blu-ray players, Set Top Boxes, DVRs, Game Consoles and HDTVs
- Parental Controls to keep your network connection safer
- Four Guest Access Login Options
- WPA / WPA2 encryption to help secure the wireless network
- QoS (WMM) optimizes bandwidth performance for streaming media
- Detachable antenna for end-user upgrade
