性能
| 频道频宽 |
40 MHz |
| VLAN支持 |
Y |
| 发射功率 |
15 dBmW |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
| 无线隔离 |
Y |
| 运转模式 |
Access Point |
| 无线局域网数据传输率 |
300 Mbit/s |
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| Wi-Fi 多媒体 (WMM)/(WME) |
Y |
| 网络标准 |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 内置存储器 |
64 MB |
| 闪存 |
16 MB |
| 支持服务质量（QoS） |
Y |
| 重启按钮 |
Y |
| 固件可升级 |
Y |
| 认证 |
FCC, IC |
| 调制 |
64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK |
| 网上管理 |
Y |
| 频段 |
2.412 - 5.825 GHz |
天线
| 集成天线 |
Y |
| 天线增益水平（最大值） |
5 dBi |
| 天线数量 |
4 |
能量控制
| 输入电压 |
100 - 240 V |
| 支持以太网（PoE） |
Y |
| 接受频率 |
50/60 Hz |
| 功耗（最大） |
15.6 W |
设计
| 放置 |
Table, Wall |
| 內置式 |
N |
| 液晶显示器指示灯 |
Y |
安全
| 支持安全算法 |
WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| 支持 SSID 数量 |
8 |
| MAC（媒体存储控制）地址过滤 |
Y |
| IP地址过滤 |
Y |
协议
| 管理协议 |
SNMP v1/v2c, MIB I/II |
| 动态主机配置协议服务器 |
Y |
重量和尺寸
| 深度 |
161.54 mm |
| 重量 |
362 g |
| 宽度 |
161.54 mm |
| 高度 |
41.6 mm |
环境条件
| 储存温度范围 (T-T) |
-20 - 60 °C |
| 运行湿度范围(H-H) |
0 - 90% |
| 储存相对湿度范围（H - H） |
0 - 90% |
另外
| 产品色彩 |
White |
| 数据传输率（最大） |
1000 Mbit/s |
| 包括 AC 适配器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 运行温度范围（T - T） |
0 - 50 °C |

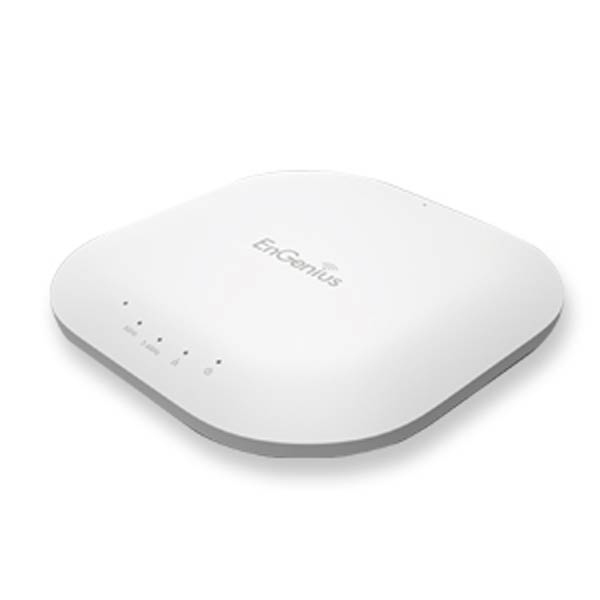

802.11a/b/g/n, 300Mb/s, 2.4-5GHz, Gigabit Ethernet, 64MB, 4x 5dB, White
The EWS310AP can operate as a stand-alone Access Point connecting to third-party PoE-capable switches but more control and versatile management of the Access Point is achievable when it is part of an EnGenius Neutron Series wireless network management solution because the AP includes firmware that enables it to be immediately discovered, configured, monitored and managed from a compatible Neutron Series PoE+ Switch (EWS5912FP, EWS7928FP or EWS7952FP).
This capability enables IT managers to deploy and manage up to 50 EWS310APs from Neutron Series Switch allowing for simplified management from one browser-based interface including simultaneous firmware upgrades, clustering, traffic monitoring, bandwidth steering and many other features that can be reset or reconfigured from the convenience of the IT manager’s desktop.
Operating in both the 2.4 GHz and 5 GHz frequency spectrums and supporting 802.11a/b/g/n standards the EWS310P features wireless speeds up to 300 Mbps on each radio, a Gigabit port for connecting to 802.3at/af-capable PoE Switches, and an enhanced receive sensitivity MIMO (Multiple In / Multiple Out) antenna array. As a result, the EWS310AP is ideal for spacious environments such as large homes, small and medium-sized businesses, multiple-floor offices, hotels, hospitals, and other multi-floor buildings.
As the EWS310AP is designed for deployments on desktops or on ceilings where power outlets may be scarce, it also comes equipped with PoE (Power-over-Ethernet) IEEE 802.3at/af for use with an 802.3at/af-capable PoE injector or 802.3at/af-capable PoE Switches, drawing up to 15.6 watts of power.
Paired with other Neutron Series Access Points and Switches, the EWS310AP helps to make managing a network easier with its standardized GUI. To protect sensitive data during wireless transmissions, the EWS310AP offers different industry-standard encryption settings for wireless transmissions, including WEP, WPA-PSK, WPA2-PSK, WPA-PSK Mixed, WPA Enterprise, WPA2 Enterprise, and WPA2 Mixed Enterprise. It also includes MAC address filtering to allow network administrators to offer network access only to verified computers and devices based on their MAC addresses.
