管理功能
| 支持管理信息基本原则 |
RFC1213, RFC1493, RFC1757, RFC2674 |
| 交换层 |
L2 |
| 流量调整 |
Y |
| 支持服务质量（QoS） |
Y |
| 网上管理 |
Y |
联网
| VLAN支持 |
Y |
| IGMP侦听 |
Y |
| 端口镜像 |
Y |
| 广播风暴控制 |
Y |
| 速率限制 |
Y |
| 链路汇集 |
Y |
| 生成树协议 |
Y |
| 网络标准 |
IEEE 802.1ab, IEEE 802.3af, IEEE 802.3at |
| 动态主机配置协议客户 |
Y |
| 10G支持 |
N |
安全
| 支持安全算法 |
WPA2-PSK, WEP, WPA, WPA-PSK, WPA2 |
| 静态接口安全 |
Y |
| SSH / SSL支持 |
Y |
| 存取控制清单(ACL) |
Y |
包装数据
| 包含电缆 |
AC, LAN (RJ-45) |
| 用户手册 |
Y |
| 快速入门指南 |
Y |
以太网电源（PoE）
| 以太网（PoE）供电总功率概算 |
130 W |
| 通过以太网（PoE）供电端口数量 |
8 |
| 支持以太网（PoE） |
Y |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
8 |
| 基本交换 RJ-45 以太网端口类型 |
Gigabit Ethernet (10/100/1000) |
| 控制台端口 |
RJ-45 |
| SFP模块插槽数量 |
2 |
环境条件
| 运行湿度范围(H-H) |
5 - 95% |
| 储存温度范围 (T-T) |
-40 - 70 °C |
性能
| 内置存储器 |
256 MB |
| 固件可升级 |
Y |
| 闪存 |
32 MB |
| 可堆叠 |
N |
协议
| 管理协议 |
SNMP v1/v2c/v3, CLI, RMONv1, SYSLOG |
重量和尺寸
| 深度 |
228.6 mm |
| 重量 |
1995 g |
| 宽度 |
330.2 mm |
| 高度 |
43.9 mm |
设计
| 液晶显示器指示灯 |
Activity, LAN, Link, PoE, Power, Y |
| 格式要素 |
1U |
| 机架安装 |
N |
另外
| 产品色彩 |
Black |
| 运行温度范围（T - T） |
0 - 50 °C |
24Gbps, Gigabit Ethernet, RJ45, 256MB RAM, 32MB Flash, 1995g, Black
Power, connect, and manage Neutron Series Access Points throughout your company

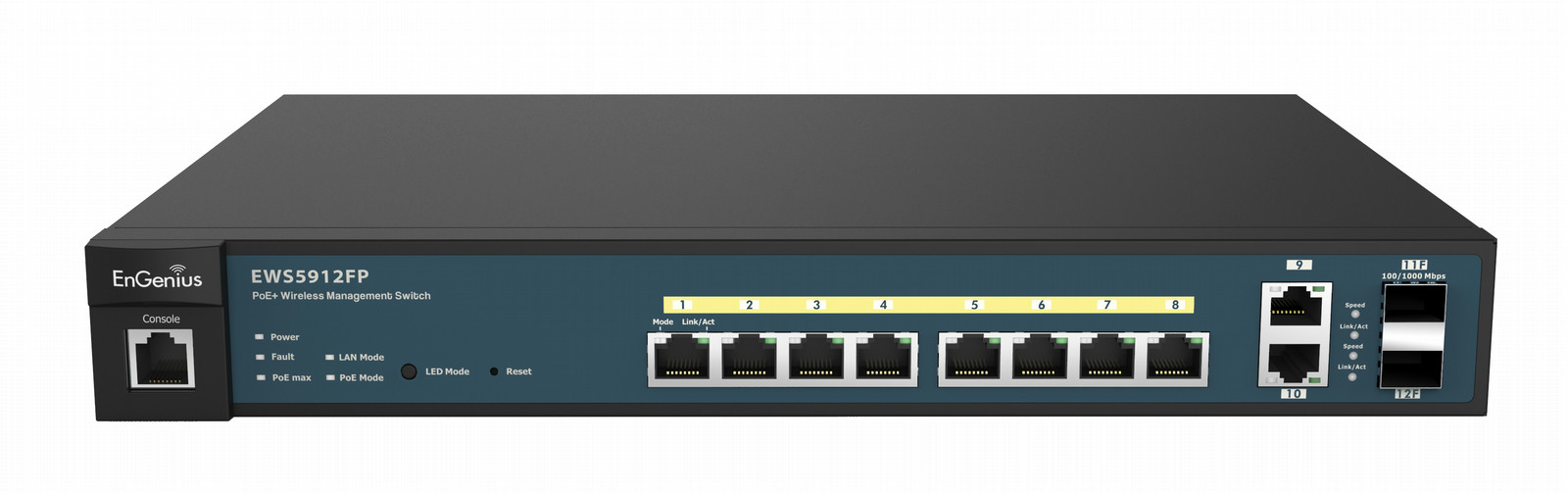

The EWS5912FP is a Neutron Series Managed Wireless solution 8-Port Gigabit PoE+ Layer 2 Switch with 2 Gigabit uplink ports and 2 Dual-Speed SFP ports for fiber uplinks. As part of an EnGenius Neutron Series wireless management solution, the EWS5912FP can control up to 20 Neutron Series Wireless Access Points to provide a single location with which to centrally configure and manage the entire network.
The EWS5912FP is a Neutron Series Managed Wireless solution 8-Port Gigabit PoE+ Layer 2 Switch with 2 Gigabit uplink ports and 2 Dual-Speed SFP ports for fiber uplinks. As part of an EnGenius Neutron Series wireless management solution, the EWS5912FP through its browser-based GUI (Graphical User Interface) can discover, configure, manage and monitor up to 20 Neutron Series Wireless Access Points.
The controller mode of the Switch provides a suite of wireless management features for IT managers to configure Neutron Series Access Points. Features include clustering Neutron Series Access Points in clusters with identical policies, Access Point IP Auto-Discovery, remote Access Point rebooting for hard-to-reach / previously deployed units, and a host of visual monitoring features including topology and floor plan view modes for the mapping out and tracking of networks. The controller also features a statistics section for record traffic tracking and comparison between units or over-time comparisons.
The interface also lets IT managers apply configuration changes to multiple Access Points or the entire network simultaneously. A dashboard provides instant access to a variety of clients, network information, and events, while a real time map displays Access Point locations and network topology for planning and deployment.
Managing the wired portion of the network is also easy using the same browser-based interface. The Switch supports IEEE 802.1p QoS which automatically classifies and prioritizes compliant device traffic to ensure that time sensitive data such as VoIP is forwarded without delay.
The Switch’s Gigabit Ethernet ports support IEEE 802.3at/af PoE and can supply up to 30 watts per port for a total PoE budget of 130 watts. The 8 Gigabit ports provide seamless connectivity for devices and applications that require high speed network access and reduce bottlenecks that can interrupt communication. The Switch’s two SFP slots accept fiber transceivers for extending the wired network beyond the limitation of Ethernet cabling. This is especially useful for schools with satellite classrooms, or for hotels and resorts, or other businesses with multiple building properties.
The EWS5912FP includes bracketing hardware for mounting into a switch rack.
