端口 & 界面
VGA(D-SUB)输出端口 |
1 |
HDMI端口数量 |
1 |
BNC输入端口 |
1 |
技术细节
支持的协议 |
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTP, HTTPS |
视频
播放支持分辨率 |
920x1080, 1280x1024, 1280x720, 1024x768 |
磁盘驱动器
支持的硬盘数量 |
1 |
硬盘接口 |
Serial ATA |
最大硬盘容量 |
4000 GB |

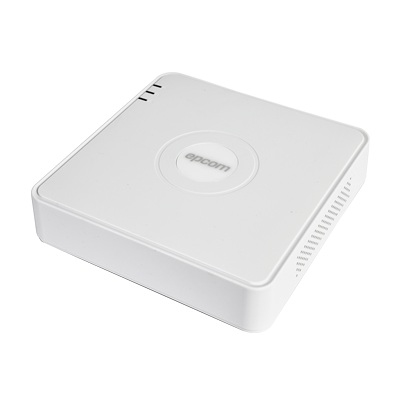

TurboHD DVR (TVI 720p v2.0 ) 8 Channels (TurboHD(HD-TVI) / Analog), with HDMI 1080p Output
<b>Features:</b>
- 8 Video TurboHD and/or Analog Channels
- 1 Audio Input / 1 Audio Output.
- Capacity for 1 SATA 4 TB HDD.
- Video HDMI / VGA Simultaneous output Full HD 1080p.
- Supports D-DNS Hikvision Service.
- Supports P2P cloud for Display.
- Compatible with client software iVMS-4200 (Windows, IOS), iVMS-4500 (Android, iPhone, iPad, iPod Touch).
Video Channels:
- 8 Video Channels 720p [TurboHD (TVI), Analog].
- BNC Connector.
Video Coding:
- Main stream: 720p, VGA, WD1, 4CIF, CIF.
- Sub stream: WD1, 4CIF, CIF, QCIF, QVGA.
- Bitrate: 32 Kbps up to 6 Mbps.
Audio Channels:
- 1 Audio Input Channel.
- 1 Audio Output Channel.
- RCA Connector.
Audio Coding:
- Compression G.711U.
- Bitrate: 64 Kbps.
Video Output:
- Video de HDMI and VGA simultaneous output.
- Supported Resolutions: 1920x1080, 1280x1024, 1280x720, 1024x768 in HDMI and VGA.
Recording:
- Recording with automatic overwriting.
- Configurable to start to recording with only one clic.
- Recording programming through calendar, manual or event.
<b>Search and Playback:</b>
- Instant playback of a camera in live Multi-Vista mode.
- Simultaneous syncronous 4 channel playback at 720p in forward/backward.
- Local and remote playback, with log or event search.
- Recording Identification through tags and playback through tags.
- Important segment block to avoid overwriting.
<b>Events:</b>
- Audible alert, Pop-Up, e-mail notification and notification to the monitoring center when an event is triggered.
- Movement detector alarm, camera block and disconnection, configurable by channel.
- Monitor HDD status, network, entries and camera status with remote notifications.
- Internal memory with logs of all the DVR activity, events or users, protected so it can't be deleted even if the device is reset to factory setting or that the hard drives are initialize.
<b>Network:</b>
- 6 simultaneous users.
- Supports Main and Sub Stream.
- Supported Protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTP, HTTPS.
<b>Interface:</b>
- 1 Network Port: RJ-45 10/100 Mbps.
- 2 USB 2.0 Ports (Supports Mouse, included)..
<b>Physical and Electrical Characteristics:</b>
- Power Supply: 12VCD (Included)
- Consumption: Max. 8W.
- Operating Temperature: -10 ~ 55 ºC.
- Dimensions: 200 x 200 x 45 mm.
- Weight: 800g.
