Waterproof and washable

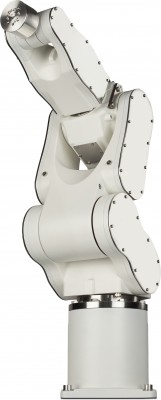

Extremely compact, flexible and ideal for narrow production cells Features Tolerant to Antiseptic Wash Special surface treatment enables high tolerance to medical solution/detergent from mild acid to mild alkaline. All axes are IP67-grade waterproof and washable. Sanitary-design Prevent Foreign Substances from Remaining Smooth surface design makes it easy to clean the product. Compact and Slim Design Compact and slim design makes it easy to install a robot in a sealed environment such as inside the isolator. Safe Material Safe coating material which is also used for kitchen utensils is used for exterior parts. For oil seal lubrication, food-grade grease is used. Also, end effectors are stainless, which reduces a risk of contamination by foreign substances. *1 Material approved by FDA (U.S. Food and Drug Administration) to contact with food *2 NSF H1 Grade Reach (mm): 605 Payload (nom./max.) (KG): 1/2,5 Controller The Epson Spider ProSix C3 is controlled selectively via the Epson RC180, the smallest and lightest controller in its performance class on the market, or with the PC-based multi-manipulator master control RC620. Manipulator Options - Longer power and signal cables (5 m/10 m/20 m) - Brake release unit - Mounting bracket Installation The Epson 6-axis robot ProSix C3 can be flexibly mounted according to application. Besides floor, wall and ceiling mounting, recessed and inclined installation is also possible. By dispensing with the base and hiding the cable duct, the workspace can be used optimally.
