It's all about the curve

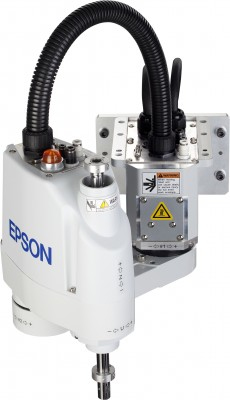

Epson SCARA G3-351-R Right optimized arm SCARA G3 are just the right choice for use in confined spaces as they are common in automated component manufacture, since these robots, despite their compact size, cover a large work envelope. However, we did not stop there and have further developed the G3 based on the fact that a high percentage of all assembly work is performed in the same arm orientation. Therefore, Epson G3 are also available with a left- curved or right-curved fi rst arm. Thanks to this arm geometry especially developed by Epson, the Epson G3-351-L/G3-351-R is the only SCARA of that size on the market whose maximum rectangular work envelope covers an area larger than an ISO A4 sheet. Reach (mm): 350 Payload (nom./max.) (KG): 1/3 Z-Hub (mm): 150 Epson SCARA robot advantages • Short cycle times • High Speed • High Precision • Outstanding joining properties • High insertion forces • High rigidity • Superb repeatability • Ease of Use • Intuitive direct teaching • Low maintenance effort • High operational safety • Longevity Manipulator-options • Tool Adaptor for easy mounting of end effectors to shaft • Longer motor and signal cables ( 5m/10m/20m) • External wiring unit
