照相机
| 光源 |
LED |
| 曝光类型 |
Auto |
| 图像冻结 |
Y |
| 光学传感器尺寸 |
1/3 " |
| Maximum frame rate |
15 fps |
| 有效传感器分辨率 |
1.92 MP |
| 传感器类型 |
CMOS |
系统要求
| 最低内存 |
512 MB |
| 最小硬盘空间 |
300 MB |
| 可支持的Mac操作系统 |
Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion |
聚焦系统
| 数字变焦 |
4 x |
| Iris |
Y |
| 自动对焦 |
Y |
| 最大焦距（f） |
4.1 mm |
| 拍摄区域（宽X深） |
271 x 360 mm |
技术细节
| 垂直旋转角度 |
-90 - 90 ° |
| 水平旋转角度 |
-90 - 90 ° |
| 线缆锁插槽 |
Kensington |
能量控制
| 耗电量 |
500 mA |
| USB供电 |
Y |
| 工作电压 |
5 V |
端口 & 界面
| 接口 |
USB 2.0 |
| USB 连接器形状 |
USB Type-B |
重量和尺寸
| 折叠尺寸（宽x深x高) |
260 x 76 x 60 mm |

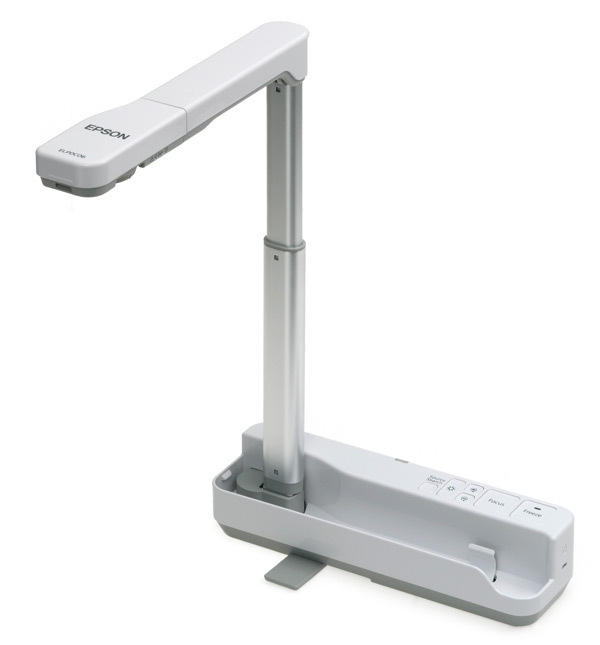

ELPDC06 - 1/3" CMOS, 2MP, 4x, USB, White
You might have wondered how to display large printed pages and illustrated documents without first photocopying them? And what about showing 3D or fragile objects close up to a large audience? Now you can do all this, with the Epson ELP DC-06 visualiser, a portable and adjustable camera that attaches directly to a computer or the latest Epson projectors. Innovative, flexible and easy to use Incorporating our advanced technologies, the Epson ELP DC-06 is a compact and affordable desktop solution for enlarging the source materials you can display while drastically cutting preparation time. The Epson ELP DC-06 visualiser only takes seconds to set up. You can connect directly to the new Epson EB-8 projector series and future Epson projectors thanks to the direct USB connection and two-in-one cable. It also lets you work via a computer. Just plug in, unfold the arm and you´re ready to focus. Highly portable, modern design The Epson ELP DC-06 visualiser does not need a separate power supply, making it very compact. It is light, and the arm folds down neatly into the base making it easy to carry. With power consumption of less than 2.5W it meets modern ecological standards. Lively presentations Visual quality is guaranteed with 2 million pixel resolution and powerful zoom allowing you to focus on details. The camera can be turned 90° in different axis and the height adjusted, so you can even capture 3D objects, or an entire board.
Easy to carry, weighs under 1kg
Two-in-one USB cable connection
Powerful 4x digital zoom, 90° head rotation and autofocus function
Practical freeze function
Secure with Kensington lock hole
