端口 & 界面
| 选择性连接 |
Ethernet |
| 标准接口 |
USB 2.0 |
能量控制
| 功耗（节能） |
8.5 W |
| 输入电压 |
100-240 V |
| 接受频率 |
50/60 Hz |
| 电源类型 |
AC |
扫描
| 胶片扫描 |
N |
| 输出色彩深度 |
24 bit |
| 平板式扫描速度（黑白，A4） |
8 sec/page |
| 光学扫描分辨率 |
1200 x 1200 DPI |
| 输入色彩深度 |
48 bit |
系统要求
| 可支持的服务器操作系统 |
Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64 |
| 可支持的Mac操作系统 |
Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
纸张处理
| ISO B系列 尺寸（B0…B9） |
B5 |
| 字符 |
Y |
| ISO A 系列文件最大尺寸 |
A4 |
性能
| 扫描驱动程序 |
ISIS, TWAIN, WIA |
| 档案格式(数码发送器) |
JPG, PDF, TIFF |
| 光源 |
ReadyScan LED |
另外
| 扫描类型 |
Flatbed scanner |
| 彩色扫描 |
Y |
A4, 1200 x 1200 dpi, 48 / 24 bit, USB 2.0, 6 kg, BOX DAMAGED

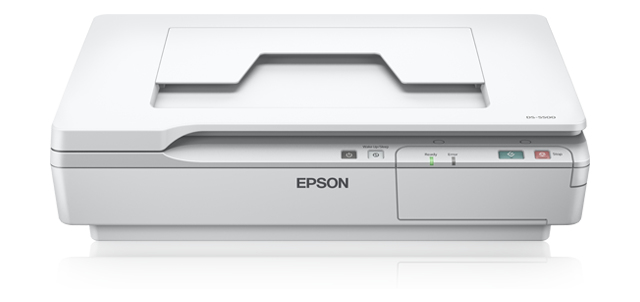

Epson WorkForce DS-5500
The Epson WorkForce DS-5500 is ideal for vertical market businesses who require easy document capture and conversion thanks to its high-quality CCD technology and powerful imaging features by Epson Scan and Document Capture Pro.
This device is specially designed to accommodate documents individually, and is ideal for users with specific capture needs, such as scanning bound materials and thick or fragile documents. This scanner can be easily integrated into vertical applications thanks to TWAIN, ISIS and WIA support, as well as Document Capture Pro connectors.
High-quality scanning results are ensured by CCD technology and innovating imaging features, such as Book Spine Correction, and improved colour dropout/enhance powered by Epson Scan. In addition, Document Capture Pro makes it easy to treat scanned data before its conversion and distribution in virtually any document repository or document management system.
This scanner and its features can be shared between multiple users using the optional Network Interface Panel. Combined with Document Capture Pro solutions, the Network Interface Panel allows users to benefit from Push Scan features and customise ‘scan to’ job functions such as ‘scan to email’ or ‘scan to Microsoft SharePoint®’, among others*2. These features enable complicated tasks to be carried out effortlessly.
Epson ReadyScan LED technology eradicates warm-up time, guarantees an absence of mercury, and lowers power consumption. These elements, combined with ENERGY STAR qualification*1, creates an environmentally friendly device.
