视频
| 播放支持分辨率 |
1920 x 1080, 1280 x 1024, 1024 x 768, 800 x 600 |
| 模拟信号系统 |
NTSC, PAL |
| 视频压缩格式 |
H.264 |
| 视频捕获速度 |
30 fps |
联网
| 以太网接口类型 |
Gigabit Ethernet |
| 支持网络协议 |
TCP/IP, DHCP, DDNS, NTP, SMTP |
技术细节
| 远程浏览 |
Y |
| Maximum frame rate |
480 fps |
| USB连接 |
Y |
| 运动传感器 |
Y |
| 支持的协议 |
PELCOP, PELCOD, LILIN, MINKING, NEON, STAR, VIDO, DSCP, VISCA, SAMSUNG, RM110, HY |
| 频道/通道 数量 |
16 channels |
端口 & 界面
| eSATA端口数量 |
1 |
| RS-485端口 |
1 |
| BNC输入端口 |
16 |
| HDMI端口数量 |
1 |
| BNC输出端口 |
1 |
| VGA（D-SUB）输出端口 |
1 |
磁盘驱动器
| 支持的硬盘数量 |
4 |
| 硬盘接口 |
Serial ATA |
另外
| 以太网连接器 |
Y |
| 包括 AC 适配器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

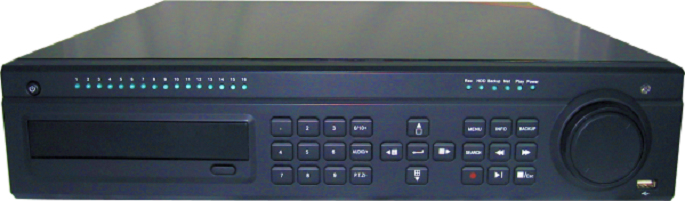

Professional 16CH, Realtime CIF, High Resolution, DVR, 480fps, USB 2.0, HDMI, VGA, 10/100/1000 Base-T Ethernet, Black
16CH H.264 Pentaplex Network DVR, 16CH Realtime CIF Recording, 16CH audio input, 16CH alarm input, 1920*1080 HDMI Output, Support D1 Recording, 16CH Playback, 4x SATA HDD, Mobile Phone Surveillance, Jog Shuttle, 2U height.
- 16 CH H.264 Pentaplex Network DVR
- Pentaplex mode: recording, playback, setup, backup, network and mobile phone surveillance simultanously
- CIF Realtime recording
- Full channel CIF simultaneously playback with audio
- Various recording mode: schedule, manual, Motion, Sensor
- Various searching mode: Time, Event(Alarm, Motion Detection), Recording List, Image
- Strong log, privacy mask and watermark function
- Powerful remote surveillance, playback, recording, control, menu setup, recording backup
- Perfect support of iPhone, iPad, Blackberry, Google phone, Symbian and Windows mobile
- Support PTZ control with preset and auto-cruise
- Flexible Display mode : Auto Switch, Full Screen, Quad/9/16, etc
- Support VGA output, display resolution adjustable up to 1280*1024. Support HDMI 1920*1080
- Support 4 x SATA HDD or 3xSATA HDD+1xDVDRW, USB Backup
- Power AC100~240V
- Standard 2U Dimension
