其他功能
| 机架安装 |
Y |
| 设计特点 |
Ral7035 / Ral9005 |
产品特点
| 类型 |
Freestanding rack |
| 冷却方式 |
Passive |
| 格式要素 |
22U |
| 高度可调支架 |
Y |
| 最大承重量(最大载重能力) |
600 kg |
| 冷却机架前门 |
Y |
| 冷却铁架后门 |
Y |

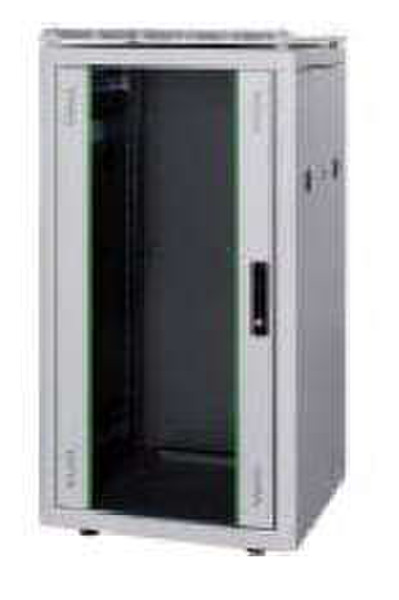

Free standing cabinets
<b>Easy to access</b>
Front door features a full-length smoked and shatterproof glass door with decorative accent trim reinforced with left/right metal frames and integral locking mechanism.

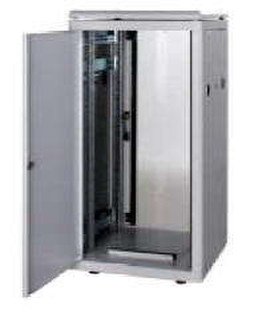

<b>Side doors;</b>
lockable, removable complete with slam latches and locks.
<b>Rear door;</b>
lockable, removable with lock.
Secure, locking front and back doors with spring loaded hinges offer best accessibility even when connecting the cabinets. The door hinge is easily swapped from one side to the other.
All giving you 4-way access to equipment. Front and rear door can be replaced that gives you flexibilty for different installations.
<b>Cable access</b>
Multiple cable entry points provide maximum versatility. There is a rubber edge sliding cover mechanism that protects and fix the cables.
There is a brush on the rear panel that can be positioned on top or bottom (brush entry available on racks of 32U and above)
<b>Construction</b>
Rigid welded frame construction in steel sheet, rapidly dismantled per 4 screw per corner. Corner of bases have welded sockets on each corner that tightly fixed into the columns gives maximum stability.
Frames are made with 28-fold design for increased stability.
<b>C-rails</b>
(3ea.left+3ea.right) increase the stability of equipment mounting and fixing shelves in 4 points.
<b>Vented Pagoda-style</b>
top cover with built-in space for available top
mount cooling system providing protection against dust flow from the top. Besides that it cause a chimney effect to provide passive heat transportation via convection.
<b>19” mounting angles</b>
(front/2ea. and back/2ea) allow for flexible configuration and adjustable in depth.
<b>Levelling feet</b>
is included as a standard feature.
Extensive range of accessories.
