其他功能
管理平台 |
SNMP / HTTP |
名义输出电压 |
230 V |
性能
浪涌保护 |
Y |
相数 |
1 |
发声警报器 |
Y |
EMI / RFI噪声滤波 |
Y |
冷却方式 |
Passive |
电源保护功能 |
Overload, Short circuit |
浪涌保护功能 |
Fax, Modem, Network, Telephone |
能量控制
输入工作电压(最大值) |
280 V |
输入工作电压(最小值) |
150 V |
输出功率(瓦特-安培) |
2200 VA |
输出工作电压(最小值) |
230 V |
输出工作电压(最大值) |
230 V |
输出功率 |
2000 W |
端口 & 界面
调制解调器 (RJ-11)接口 |
2 |
电源插头 |
C14 coupler |
交流电(AC)插座数量 |
8 |
电池
电池组数量 |
8 |
热插拔电池 |
N |
电池充电时间 |
3 h |
半载典型备用时间 |
28 min |
全载典型备用时间 |
8 min |
替换电池盒 |
2 x 4 VRLA, 12V, 9Ah |
冷启动 |
Y |
自动电池测试 |
Y |
电池更换报警 |
Audible, LED |
电池类型 |
VRLA |
另外
RS-232接口 |
1 |
过滤 |
LC |
以太网路(RJ-45)连接接口数量 |
2 |

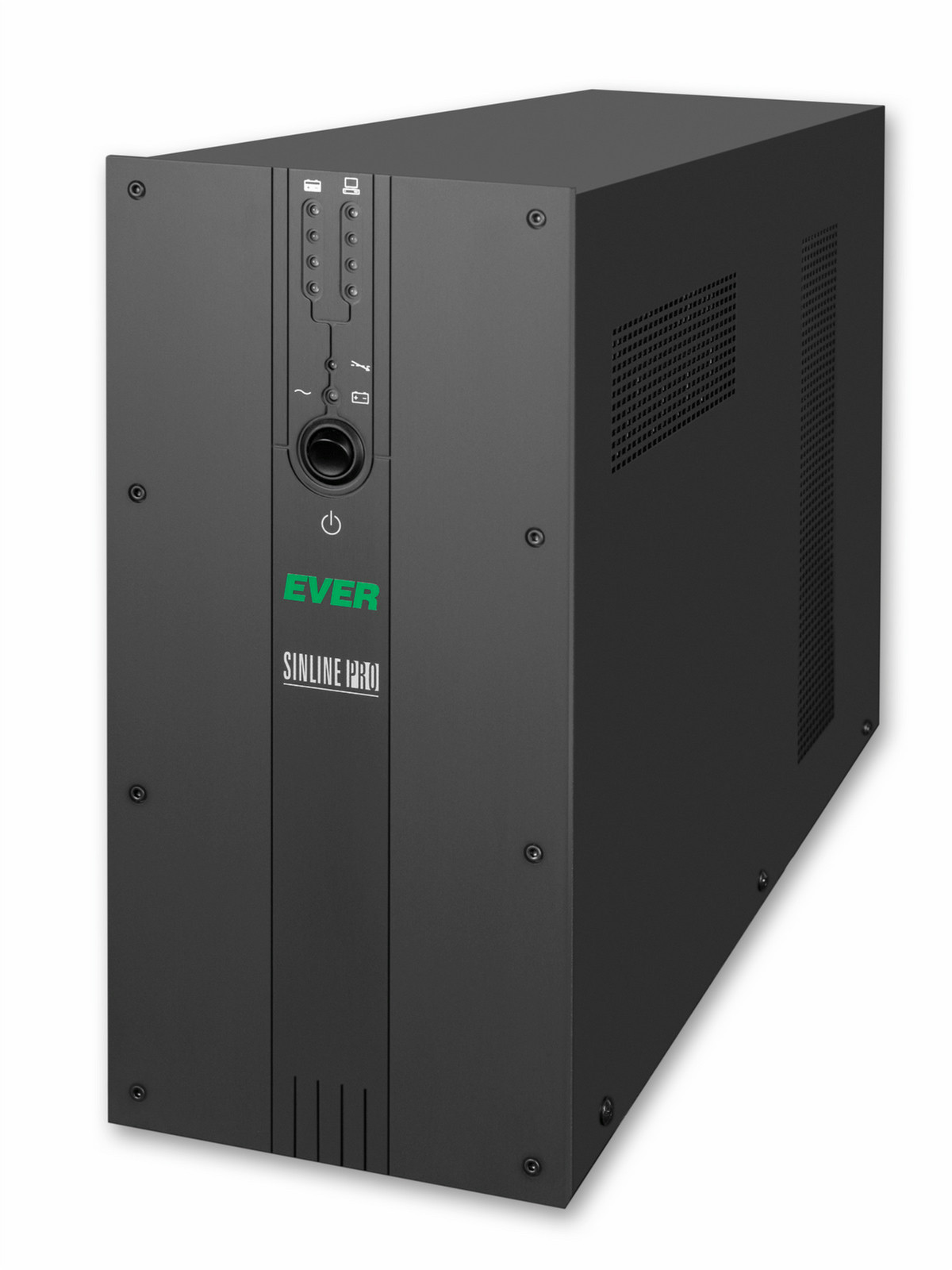

Sinline Pro 2200VA/2000W
The latest generation of SINLINE series UPS is designed to protect computer networks, servers, and advanced workstations.
Similar to all of the other Sinline products, SINLINE Pro series is equipped with unique systems, which were designed by EVER’s engineers: "Clear Digital Sinus (CDS)" - digital hardware system that enables, both for grid supply and battery mode, voltage generation at the UPS output with a clear, sinusoidal waveform, as well as “Cool Battery Charging” (CBC), which significantly prolongs battery life.
In addition, this series is fitted with the automatic voltage regulation system (AVR), grid voltage filtering, telecommunication and LAN filter, as well as RS232 and USB communication interface.
In addition to that, SINLINE Pro UPS can support an external battery pack and comes equipped with a power boost function, which enables power adjustment in the range from 2200 VA to 5000 VA. When the user decides to use the simplest, 2200 VA solution, sufficient in a given time to meet the existing power requirement, he or she may, as the power requirement (load) increases, increase the power uptake of the UPS to 3 kVA, 4 kVA or 5 kVA, depending on the need. It is enough to report the requirement to the manufacturer.
Application: servers, personal computers, computer terminals,devices sensitive to power outages, and telecommunication devices.
Sinline Pro series provides intelligent and safe power supply to computer hardware with a guaranteed "clear sinusoidal waveform" at the output in battery mode.
The series comprises the following models:
Sinline Pro 2200, Sinline Pro 3000, Sinline XL 4000, Sinline Pro 5000.
It is possible to purchase an extended warranty.
