技术细节
视频丢失检测 |
Y |
暂停功能 |
Y |
事件记录 |
Y |
图形用户界面(GUI) |
Y |
运动传感器 |
Y |
频道/通道 数量 |
16 channels |
端口 & 界面
eSATA端口数量 |
1 |
HDMI端口数量 |
1 |
BNC输出端口 |
14 |
VGA(D-SUB)输出端口 |
1 |
另外
RS-232接口 |
1 |
以太网路(RJ-45)连接接口数量 |
3 |

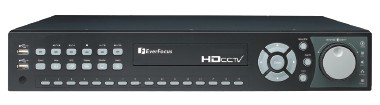

EDRHD2H14/8: Hybrid: 2 Ch HDcctv and 14 Ch SD, 8 TB, DVD
- 2 HD channels and 14 Analog.
- MobileFocus: Supports iPhone®/iPad®/Android™/Blackberry®.
- MobileView: Supports additional PDAs, Smartphones, Safari®.
- Virtual Real Time Recording: 15 FPS @ 1080p, Real Time Recording: 30 FPS @ 720.
- Dual Stream Controls: Record at a higher resolution but view at a lower resolution online/mobile device for faster viewing.
- 2x, 4x, 8x, 16x zoom on local and remote live & playback.
- Independent Channel Controls: Frame Rate/Resolution/Record Quality.
- Recording resolution can be changed at different times of the day via scheduling.
- Simultaneous Pentaplex Operation at DVR & Online: Live/Recording/Playback/Archiving/Remote View.
- H.264 Compression for efficient disk and network utilization.
- FREE DDNS Service Hosted by EverFocus for EASY Networking Options.
- Main Monitor: Simultaneous Viewing at 1080 x 1080 on HDMI and VGA.
- Built-in DVD burner.
- Supports External Hard Drive Storage via eSATA.
- 1-BNC Looping Output per SD Channel.
- Per-Camera Audio Channels.
- Multiple control inputs: mouse/front panel/IR remote controller/EKB500 keyboard.
- User Friendly GUI with graphical icons and visual indicators.
- Local & Remote On-Screen PTZ Control.
- Built-in recording calculator estimates storage capacity based on settings.
- Snapshot Search: Extract and view incremental “Snap Shots” of video to easily go through days of footage in minutes.
- Smart Search: quickly identify motion in areas of interest from recorded video.
- Event Search: Search date/time by an event (alarm, motion, video loss).
- Express Playback & Search: Point, Click, Drag playback bar for Instant Viewing.
- Express Setup: A unique menu option for quick & easy installation.
- Quick copy: Instantly copy the last 10/20/30/60/90 minutes of video to USB/DVD.
- At any time during playback begin to copy video instantly to USB/DVD by clicking the quick archive icon.
- Remote Archive video to DVD/USB connected to DVR from a remote location and to the PC your viewing the DVR from.
- 3 different administration levels to restrict or allow access to DVR controls (DVR/Online Interface).
- Online Web interface: Allows 10-users to simultaneously view online from a browser.
- Rack Mountable (19”) includes Rack Ears.
- IR Remote & USB Mouse included.
