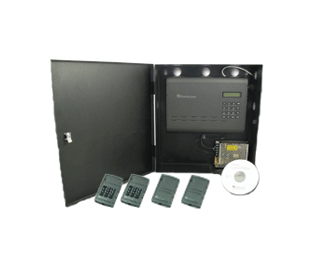

4 Door FlexPack Access Control System Kit w/ 1 Pre-installed 2 Door Expansion, 2 Single Gang & 2 Keypad Readers
<b>Features:</b>
- Embedded Linux operating system with built-in web interface allows access through your web browser.
- Compact size, modular design make the system simple to install and easily expandable while maintaining powerful management capabilities
- Anti-passback capabilities
- Real-time clock
- Supports 4 readers, expandable to 1016 max per network
- 127 controllers can be networked together through RS485 bus or TCP/IP (TCP/IP requires additional LAN interface device)
- Built in TVS (Transient Voltage Suppressor) on both controller and readers
- Flexible supervised input points: Up to 10 alarm inputs,18 outputs, all configurable
- Real-time communication with PC: data is transferred in real time, ensuring up-to-the second accuracy and immediate notification if an access point goes offline
- 2 relays, SPDT 8A @ 30VDC
- Uses Microsoft Data Engine (MSDE)
- Space provided in enclosure for back up battery
- Real-time viewing of events comes standard
- Automatic daylight savings time adjustments
- System can arm/disarm alarms
- 9,999 users (16,000 events can be stored in each controller)
- Integrated Keyboard and LCD screen on controller for standalone programming and card enroll/de-enrollment
- System Reader connects to a PC via USB and allows easy card enrollment and RS485 bus networking
- Single Gang, Keypad and System Readers utilize 125KHz proximity technology and Wiegand 26 or RS232 data output
- Readers are suitable for indoor or outdoor mounting and come with an 18” pigtail for easy installation
- TCP/IP optional with additional LAN interface device
- Communication : RS232 or RS485
