处理器
处理器频率 |
1290 MHz |
CUDA核心 |
384 |
图形处理器系列 |
NVIDIA |
CUDA |
Y |
最大数字分辨率 |
7680 x 4320 pixels |
处理器提高时钟速度 |
1544 MHz |
内存参数
图形适配器内存类型 |
GDDR5 |
内存带宽(最大) |
48.06 GB/s |
数据宽度 |
64 bit |
内存时钟速度 |
6008 MHz |
独立显卡适配器內存 |
2 GB |
性能
DirectX版本 |
12.0 |
OpenGL版本 |
4.5 |
PhysX |
Y |
集成电视调谐器 |
N |
Full HD |
Y |
端口 & 界面
DVI-D接口数量 |
1 |
接口类型 |
PCI Express x16 3.0 |
HDMI端口数量 |
1 |
设计
插槽数量 |
1.5 |
风扇数量 |
1 fan(s) |
冷却方式 |
Active |
另外
图形处理器 |
GeForce GT 1030 |
双dvi(互应式数字视频) |
Y |

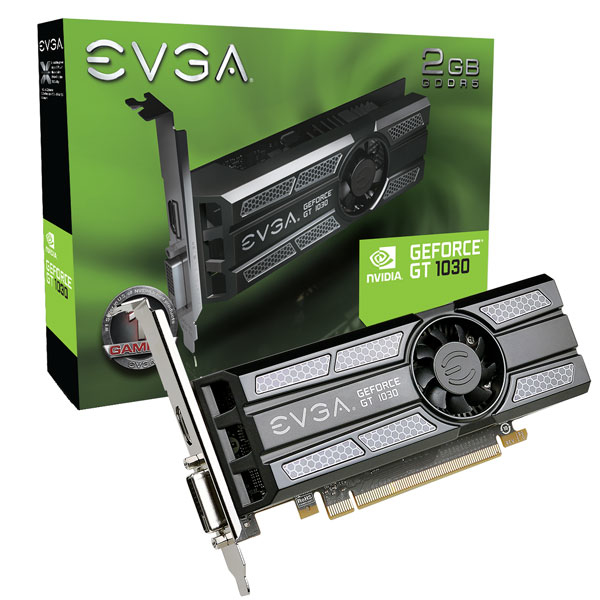

NVIDIA GT 1030, PCI-E 3.0 16x DVI-D, HDMI, 7680x4320
NVIDIA GameStream Technology
Stream extreme GeForce GTX PC gaming experiences to portable device like NVIDIA SHIELD with super-smooth, low-latency performance.
OpenGL 4.5 Support
Supporting the latest standards in the OpenGL API.
Simultaneous Multi-Projection
Simulates seperate viewports of the same scene giving improved performance in VR and improved display accuracy in NVIDIA Surround
NVIDIA Ansel
Revolutionary new 360-degree image capture.
NVIDIA GPU Boost 3.0
Dynamically maximizes clock speeds based on workload and allows enthusiast-class controls such as temperature target and fan controls, extra over-voltage headroom, and optimizations for water-cooling solutions. This allows gamers to push performance to new levels.
Microsoft DirectX 12
Support for the latest Microsoft DirectX API to enable next-generation gaming.
Vulkan API
A next generation graphics and compute API from Khronos Group that provides high-efficiency, cross-platform access to modern GPUs.
PCI Express 3.0
This card is designed for the PCI Express 3.0 bus architecture, offering the highest data transfer speeds for the most bandwidth-hungry games and 3D applications. It also maintains backwards compatibility with existing PCI Express motherboards for the broadest support.
Max Digital Resolution - 7680x4320
DisplayPort 1.4 Ready supporting up to 7680x4320 resolution at 60Hz
Built for EVGA Precision XOC
This new version of Precision is built for the NVIDIA Pascal architecture and combines the best of EVGA Precision and EVGA OC Scanner to give you never before seen overclocking features and built in automatic tuning.
Low-Profile Ready
This graphics card may be used in a low-profile form factor chassis upon installation of a low-profile PCI bracket.
