处理器
| CUDA |
Y |
| 处理器频率 |
1556 MHz |
| CUDA核心 |
3584 |
| 图形处理器系列 |
NVIDIA |
| 处理器提高时钟速度 |
1670 MHz |
| FireStream |
N |
性能
| NVIDIA® G-SYNC 技术配置 |
Y |
| DirectX版本 |
12.0 |
| OpenGL版本 |
4.5 |
| 集成电视调谐器 |
N |
| Full HD |
Y |
端口 & 界面
| DVI-D接口数量 |
1 |
| 接口类型 |
PCI Express x16 3.0 |
| DisplayPort 数量 |
3 |
| HDMI端口数量 |
1 |
| DisplayPort版本 |
1.4 |
内存参数
| 内存带宽（最大） |
484 GB/s |
| 像素管线 |
3584 |
| 数据宽度 |
352 bit |
| 内存时钟速度 |
11264 MHz |
| 独立显卡适配器內存 |
11 GB |
能量控制
| 补充电源连接器 |
1x 6-pin, 1x 8-pin |
| 最低系统供电 |
600 W |
设计
| 照明 |
Y |
| 风扇数量 |
2 fan(s) |
| 冷却方式 |
Active |
另外
| 发光颜色 |
White |
| 图形处理器 |
GeForce GTX 1080 Ti |
| 双dvi（互应式数字视频） |
Y |

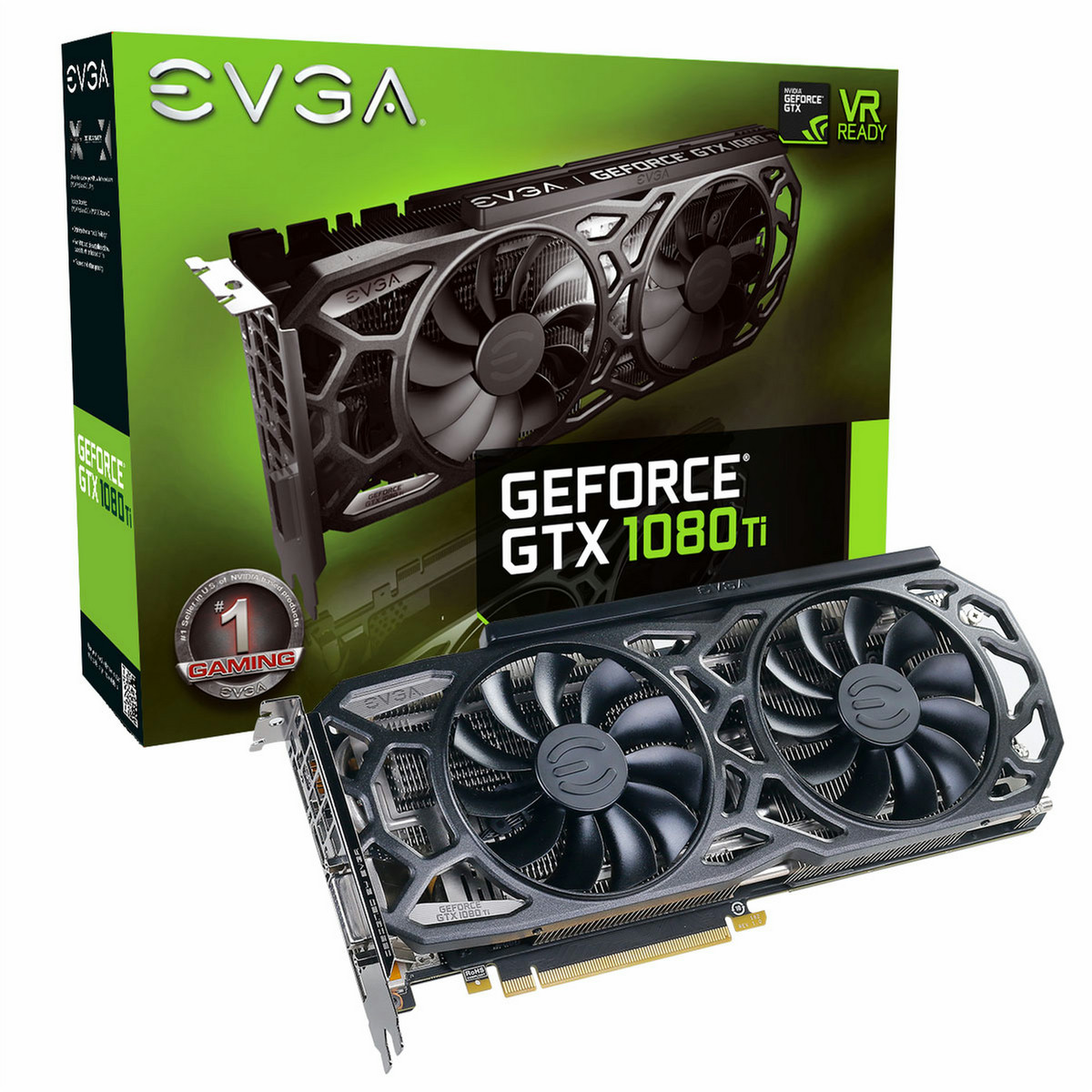

GeForce GTX 1080 Ti, 1556/1670MHz, 11 GB GDDR5X, 11016 MHz, 484 GB/s, 6-Pin + 8-Pin, PCI-E 3.0, 118.48 x 269.2 mm
The EVGA GeForce® GTX 1080 Ti uses NVIDIA's new flagship gaming GPU, based on the NVIDIA Pascal™ architecture. The latest addition to the ultimate gaming platform, this card is packed with extreme gaming horsepower, next-gen 11 Gbps GDDR5X memory, and a massive 11 GB frame buffer.
3x the Fans, 3x the Fun. The EVGA GeForce GTX 1080 Ti FTW3 w/ iCX Technology graphics card keeps your card cool during even the longest gaming sessions. Each fan independently cools a different region of the card based on sensors that track the GPU, VRAM, and Power temperatures in real-time. With this kind of interactive cooling, your game is the only thing you'll need to worry about.
To celebrate the launch of the EVGA GeForce GTX 1080 Ti FTW3 w/ iCX Technology, EVGA is giving away one free EVGA GTX 1080 Ti FTW3 graphics card to a lucky winner. To become eligible, make sure you stop in to the EVGA Forums through the Gleam App to check out our event thread and feel free to contribute a picture of your EVGA GTX 1080 Ti SC Black Edition, 1080 Ti SC2, or 1080 Ti FTW3. Next, use the Gleam App to experience EVGA's various social media platforms, and gain an entry for each different way you support EVGA through social media. No Purchase Necessary. Void where prohibited.
About EVGA iCX Technology
Featuring a total of 11 global patents (pending and granted), iCX from EVGA is efficiency perfected. With 9 additional sensors embedded on the PCB, a newly designed die-cast baseplate and backplate, purposefully-directed airflow chambers, and full control using EVGA Precision XOC, EVGA's iCX is the very definition of Interactive Cooling.
EVGA iCX
The patented EVGA iCX is comprised of two main components - EVGA iCX Cooling and EVGA iCX Technology. Select EVGA GeForce GTX 1080 Ti graphics cards are built using EVGA iCX Cooling, which delivers industry-leading cooling performance. To take full advantage of iCX Cooling, select EVGA GeForce GTX 1080 Ti graphics cards are built with iCX Technology to monitor temperatures and communicate dynamically with iCX Cooling to give you Peace of Mind Gaming.
EVGA iCX Cooling
EVGA iCX Cooling was built from the ground-up to reimagine how every area of a graphics card can improve cooling performance. iCX Cooling begins with a form-fitting die-cast baseplate and backplate, which touch all vital components and uses an interlaced pin fin design to remove more heat from components. The aerodynamically-designed heatsink contacts the baseplate in multiple areas, using a series of pin holes and half-open fins to direct air over the graphics card. EVGA GTX 1080 Ti graphics cards with iCX Cooling include a safety fuse to protect your card and system. iCX Cooling can be further controlled by using EVGA Precision XOC.
EVGA iCX Technology
EVGA iCX Technology takes iCX Cooling to a new level. iCX Technology incorporates 9 additional thermal sensors on the graphics card PCB, which monitor the GPU, the Power, and Memory areas of the graphics card. The iCX Technology monitoring is used to dynamically direct the fans asynchronously to allow iCX Cooling to increase airflow wherever it's needed most. iCX Technology further includes a safety fuse to protect your card and system. EVGA iCX Technology can be further monitored and controlled through EVGA Precision XOC to truly give you Peace of Mind Gaming!
