端口 & 界面
集线器接口 |
USB 3.0 (3.1 Gen 1) Type-A, USB 3.0 (3.1 Gen 1) Type-C |
接口数量 |
4 |
主机接口 |
USB 3.0 (3.1 Gen 1) Type-C |
USB 3.0(第 1代3.1)Type-C 端口数量 |
2 |
USB 3.0(第 1代3.1)Type-A 端口数量 |
3 |
系统要求
可支持的Linux操作系统 |
Y |
可支持的Mac操作系统 |
Y |
性能
浪涌保护 |
Y |
数据传输速度 |
5000 Mbit/s |
技术细节
运行温度范围(T - T) |
32 - 131 °F |

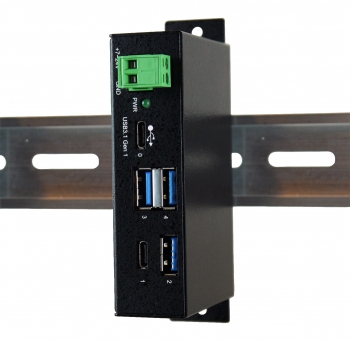

5Gbps, USB 3.0/3.1(Gen1) Metal HUB with 1 x C - and 3 x A - ports, Upstream with C - port, 114.5 x 26.3 x 5.3mm, 0.4kg
The EX-1195HMS is a USB 3.0/3.1(Gen1) Metal hub that complies with the Universal Serial Bus (USB) specification Revision 3.1(Gen1) and works up to 5Gbps. It provides one USB-C upstream port and 4 downstream facing ports with one USB-C and 3 USB-A connectors. The EX-1195HMS support 15KV ESD Surge protection for all ports. Port 1 support a full-featured USB-C female port. It is possible to connect up to four external USB 3.0 peripheral devices to one USB 3.0 port in a 19-inch rack. He can be used for automation– and office applications. The EX-1195HMS fulfils the special requirements of industrial applications.
- USB 3.0 HUB with one USB C– as well as three A-ports
- 15KV ESD Surge protection
- Support protection of devices against voltage fluctuation
- Power from +7 up to +48V DC over terminal block
- Easy installation with the included DIN-Rail Kit
- Support 900mA USB Bus Power for each port
- Support Fast USB Battery Charging: CDP and DCP modes
- Support all USB 1.1 up to 3.0 compatible devices
- Optional power over USB port +5 Volt (Bus-Power)
- Full-Featured USB-C Port Enables Reversible Plug Orientation and Cable Direction
