联网
| 芯片组 |
Realtek RTL8111E |
| 巨型帧 (Jumbo frames) |
9000 |
| 以太网铜缆技术 |
1000BASE-T, 100BASE-T, 10BASE-T |
性能
| 自动MDIX IEEE |
Y |
| 网路唤醒功能 |
Y |
| 可支持的Mac操作系统 |
Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
另外
| 连接方式 |
Wired |
| 巨型帧 |
Y |
| 数据传输率（最大） |
1000 Mbit/s |
| 以太网路(RJ-45)连接接口数量 |
2 |
10/100/1000 Mbit/s, PCI, Auto-MDI/MDI-X, 90 x 63.6 mm, 300 g

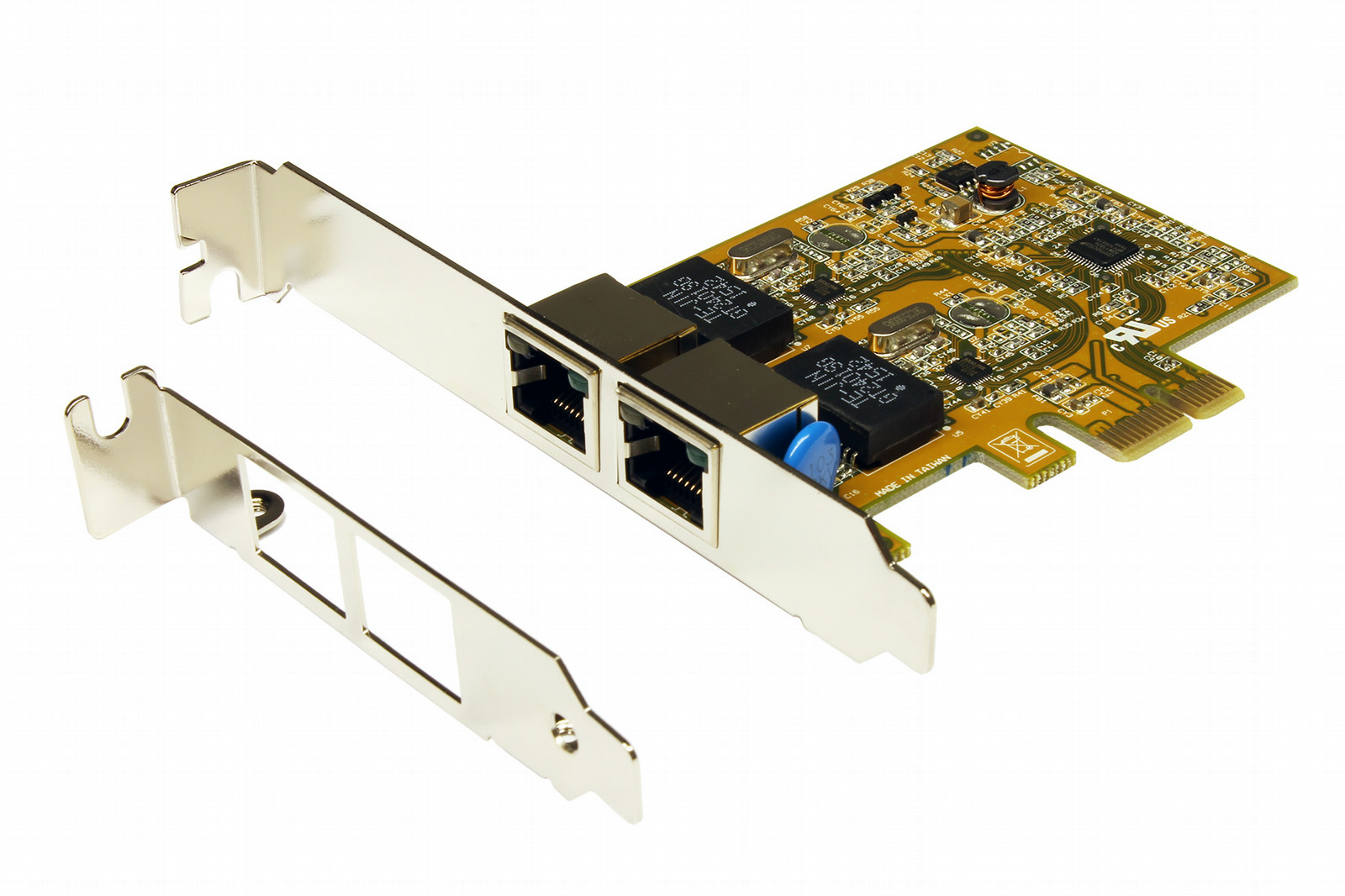

The EX-6072-3 is a high performance Dual Gigabit LAN to PCI-Express Card which is fully compatible with IEEE 802.3/u/ab. It is specially designed for any PC with a PCI–Express slot. With the EX-6072-3 you can upgrade your Ethernet LANs to the speed of 1000Mbps on each port, that’s up to 10 times faster than the standard high speed Ethernet. It will supercharge your data transfer on your local network and improve your bandwidth. It provides a big transmit/receive buffer, crossover detection and auto-correction. It is fully plug –and-play compatible to install it easily and quickly and does support a various range of operating systems. With the card it’s included a Low Profile Bracket for small computer case.
- Support 10/100/1000 Base-T Ethernet standards
- Support Auto-MDI/MDI-X Auto (for Crossover cable)
- Support Jumbo Frame up to 9Kbytes, Pair Swap/Polarity/Skew Correction
- Wake-on-LAN and Remote Wake-up
- Support Full Duplex Flow Control (IEEE 802.3x)
- Support IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding
- 48KB Buffer Transmit/Receiver Chip
- Activity LED to check the data transfer
