其他功能
槽式 |
PCI-Express x4 up to x16 |
Mac兼容性 |
N |
数据传输速度 |
10 Mbit/s |
运行温度范围(T - T) |
32 - 131 °F |

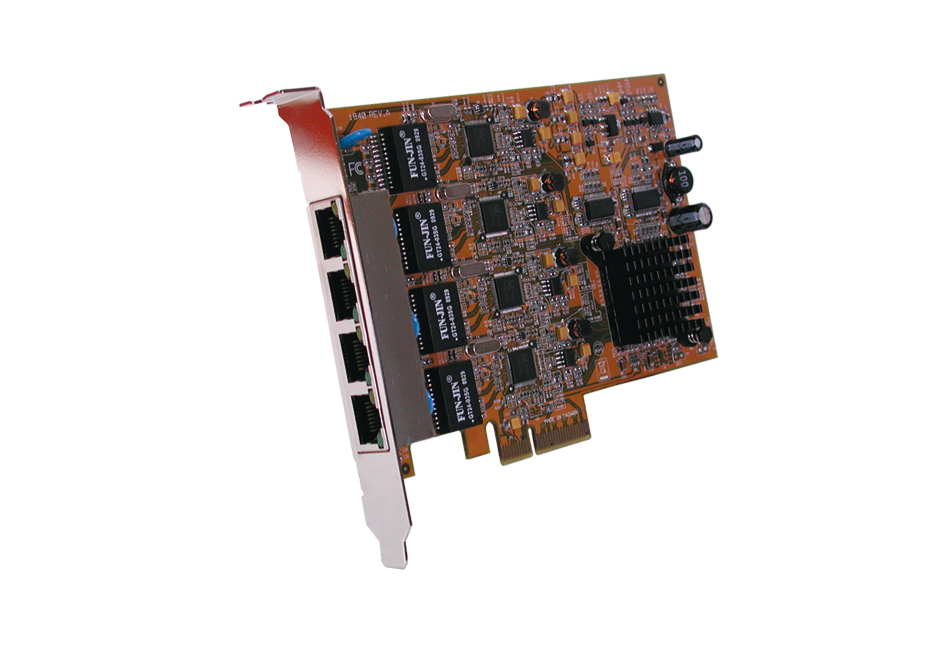

Quad PCIe, 4 x Gigabit LAN Netware card
The EX-6074 is a high performance Quad Gigabit LAN to PCI-Express Card which is fully compatible with IEEE 802.3/u/ab. It is specially designed for any PC with a PCI–Express x4 slot. With the EX-6074, you can upgrade your Ethernet LANs to the speed of 1000Mbps on each port, that’s up to 10 times faster than the standard high speed Ethernet. It will supercharge your data transfer on your local network and improve your bandwidth. It provides a big transmit/receive buffer, crossover detection and auto-correction. It is fully plug –and-play compatible to install it easily and quickly and does support a various range of operating systems. Ideal tool for more IP cameras.
- Supports 4-lane PCI-Express base specification 1.1
- Integrated Dual 10/100/1000 Transceiver
- Supports Crossover Detection & Auto-Correction (for Crossover cable), Support Pair Swap/Polarity/Skew Correction
- Wake-on-LAN and Remote Wake-up Support
- Supports Full Duplex Flow Control (IEEE 802.3x)
- Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding
- 48KB Buffer Transmit/Receiver Chip
- Microsoft NDIS 5 Checksum Offload (IP, TCP, UDP), Supports PCI Message Signaled Interrupt (MSI)
- Activity LED to check the data transfer
