数据传输
交换容量 |
17.5 Gbit/s |
最大数据传输率 |
1 Gbit/s |
队列数量 |
8 |
端口 & 界面
基本交换 RJ-45 以太网端口数量 |
48 |
SFP模块插槽数量 |
2 |
SFP/SFP+端口数量 |
2 |
环境条件
运行温度范围(T - T) |
32 - 104 °F |

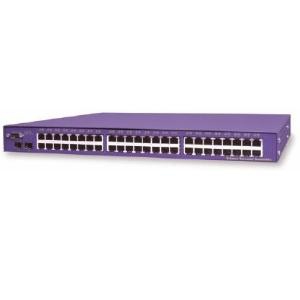

Summit48si DC, 48 10/100BASE-TX Ethernet ports, two unpopulated mini-GBIC 1000BASE-X ports, Basic Layer 3 switching, DC power supply
With industry-leading performance for the most demanding applications, Summit48si has a non-blocking architecture with 17.5 gigabits of throughput with wire-speed performance on every port.
The Summit48si switch provides comprehensive edge security features such as MAC address security which allows identifying port abuse such as rogue wireless access points or hubs/switches on edge ports. It also provides Web- and MAC-based Network Login does not require any specific client software as well as IEEE 802.1x based authentication. Every user on every port can be authenticated so the network can be protected at the most sensitive point of attack—at the edge.
Multiple Supplicant (client) allows multiple clients to be individually authenticated on the same port. Summit48si series switches have wire-speed Layer 2-4 Access Control Lists (ACLs) on every port to maximize security while maintaining throughput.
- Quality of Service (QoS)
- Ethernet Automatic Protection Switching (EAPS) resiliency protocol
- Minimized Latency
- Non-Blocking Forwarding
- Network Login (MAC, HTTP and 802.1x) with multiple supplicant
- Hardened network infrastructure
