安全
认证方法 |
RADIUS |
支持安全算法 |
802.1x RADIUS, WPA, WPA2 |
安全特性 |
NAT, SIF |
IP地址过滤 |
Y |
性能
VLAN支持 |
Y |
以太网的数据传输率 |
10, 100, 1000 Mbit/s |
无线局域网数据传输率 |
1733 Mbit/s |
2.4 GHz |
Y |
5 GHz |
Y |
Wi-Fi 多媒体 (WMM)/(WME) |
Y |
带宽 |
2.333 GHz |
支持服务质量(QoS) |
Y |
用户数量 |
256 user(s) |
调制 |
DSSS, OFDM |
频段 |
2.412 - 2.472, 5.18 - 5.825 GHz |
能量控制
输入电压 |
36 - 57 V |
支持以太网(PoE) |
Y |
天线
天线类型 |
External |
天线接口类型 |
N-Type |
天线数量 |
8 |
连接器数量 |
8 |
协议
动态主机配置协议客户 |
Y |
动态主机配置协议服务器 |
Y |
环境条件
非运行高度 |
0 - 9100 m |
工作高度 |
0 - 2440 m |
另外
数据传输率(最大) |
1733 Mbit/s |
以太网路(RJ-45)连接接口数量 |
2 |
WiNG-5, 802.11ac, 2 x Gigabit Ethernet RJ-45, PoE, IP67
Rugged Design Delivers Next-Generation High-Performance Wi-Fi in Demanding Outdoor Environments

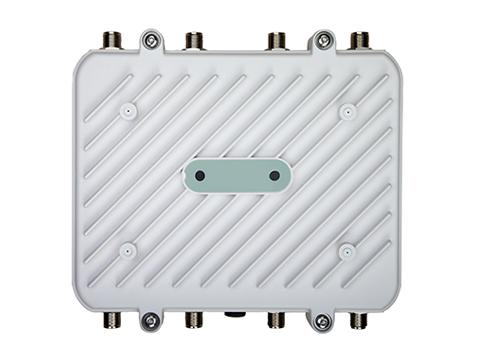

Break through your walls and extend your wireless LAN (WLAN) outdoors with the ExtremeWireless WiNG AP 8163. This rugged access point is purpose-built inside and out to enable easy extension of robust wireless connectivity to workers in outdoor spaces. On the outside is a housing designed to handle virtually any weather conditions. On the inside, three radios give you the power and flexibility to handle today’s bandwidth-heavy applications and secure your data — without purchasing and managing an additional layer of equipment. Each of the two 802.11n radios can support either the 2.4 GHz or 5 GHz band, providing the flexibility to segment traffic as needed to maximize network and application performance. The third band-unlocked radio can be used to help increase security and network uptime as either a dedicated sensor for a Wireless Intrusion Prevention System (WIPS), enabling around-the-clock rogue detection, or as a Scan Ahead radio that can find clean channels and eliminate network outages due to radar interference in the 5 GHz band. And with high-powered radios, you’ll experience greater capacity and better network performance with fewer access points, effectively reducing the cost of your wireless LAN. With the AP 8163, whether your workers are viewing technical schematics, placing a video call to get on-the-spot assistance with a task, or accessing an inventory application, you’ll have the bandwidth you need to continually exceed their performance expectations — with the integrated around- the-clock monitoring required to keep your network safe.
