性能
| 最大数据传输率 |
10.2 Gbit/s |
| 输入电压 |
12 V |
DisplayPort to HDMI Active Adapter

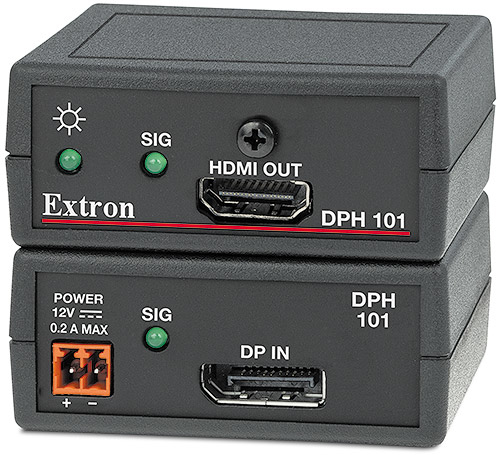

The Extron DPH 101 is a compact one input, one output DisplayPort to HDMI active adapter. Incoming signals from Type 2 enabled, 4K-capable Dual-Mode DisplayPort sources are equalized up to 15 feet (4.5 m) at the input to compensate for signal loss. The DPH 101 then reconditions the signal, ensuring signal integrity up to an additional 15 feet (4.5 m) from the output to the connected HDMI device. The DPH 101 is HDCP compliant, and supports data rates up to 10.2 Gbps and 4K/30p video resolutions. The DPH 101 can be powered by a power supply shared with another Extron product or an optional 12V 1A power supply. The DPH 101 is ideal for AV applications that require the integration of DisplayPort equipped sources into HDMI system designs.
The DPH 101 provides support for Mini DisplayPort-equipped sources when used with Extron MDP Series Mini DisplayPort Adapter cables. The DPH 101 can be used in conjunction with Cable Cubby enclosures with Retractor DisplayPort and Retractor XL DisplayPort cables, allowing meeting participants to share content from their DisplayPort-equipped laptops onto the room’s main HDMI-enabled display.
The DPH 101 is housed in a compact 1" (2.5 cm) high, 2.4” wide enclosure for discreet placement and mounting in space-constrained environments with the included fabric hook and loop tape.
- Provides connectivity between Type 2 enabled, 4K-capable Dual-Mode DisplayPort equipped sources and HDMI sink devices
- Equalizes incoming DisplayPort signals up to 15 feet (4.5 meters) to compensate for signal loss due to low quality cables or marginal sources
- Reconditions HDMI signals at the output to ensure signal integrity up to 15 feet (4.5 m) to the connected HDMI device
- Supports computer video to 2560x1600, HDTV 1080p/60 Deep Color, and 4K resolutions
- Passes EDID information from HDMI display to the source
- HDCP compliant
- Supports data rates of 3.4 Gbps per color; 10.2 Gbps total
- Complies with VESA Interoperability Guideline
- LED indicator for signal presence and power — Provides visual indication of system status for real-time feedback and monitoring of key performance parameters.
- Compact 1” (2.5 cm) high, 2.4” wide enclosure for discreet placement and mounting in space-constrained environments — Includes fabric hook and loop tape for easy installation in any application.
- Shares power supply with another Extron product or optional external power supply — The DPH 101 can be powered with a shared power supply from another Extron product or an optional 12V 1A power supply, part #70-775-01.
