端口 & 界面
DVI输出端口 |
1 |
DVI输入端口 |
1 |
RJ-45输出端口 |
3 |
技术细节
最大传输距离 |
45 m |
类型 |
AV transmitter |
可支持的电缆类型 |
Cat5e, Cat5, Cat6 |
重量和尺寸
发射器重量 |
300 g |
发射器尺寸(宽x深x高) |
222 x 76 x 44 mm |

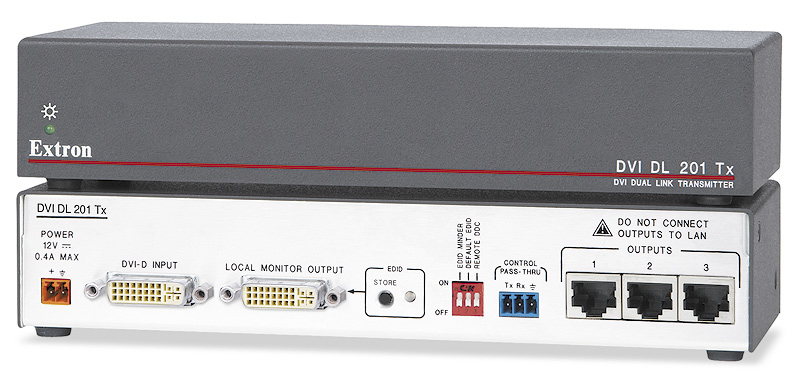

Dual Link DVI Twisted Pair Extender with EDID Minder®, Transmitter
The Extron DVI DL 201 is a transmitter and receiver set that enables dual link or single link DVI signals to be carried over distances significantly beyond the capability of standard dual link DVI cables. Linked together using three economical and integration friendly CATx, or Extron STP201 cables, the DVI DL 201 transmitter and receiver work together to send dual link or single link DVI-D signals up to 200 feet (60 meters). The DVI DL 201 set features EDID Minder®, automatic input equalization, and a buffered DVI loop-through output to support a local monitor for simplified PC integration.
- Transmits dual link DVI-D and control signals over CATx cables
- Sends 2560x1600 signals over 100 feet (30 meters) with shielded CATx cable
- Extron strongly recommends using individually shielded twisted pair cabling for optimal performance
- Extron STP201 Digital Twisted Pair cable provides added protection from outside interference and increases overall signal transmission distance
- EDID Minder® automatically manages EDID communication between connected devices
- Automatic input cable equalization
